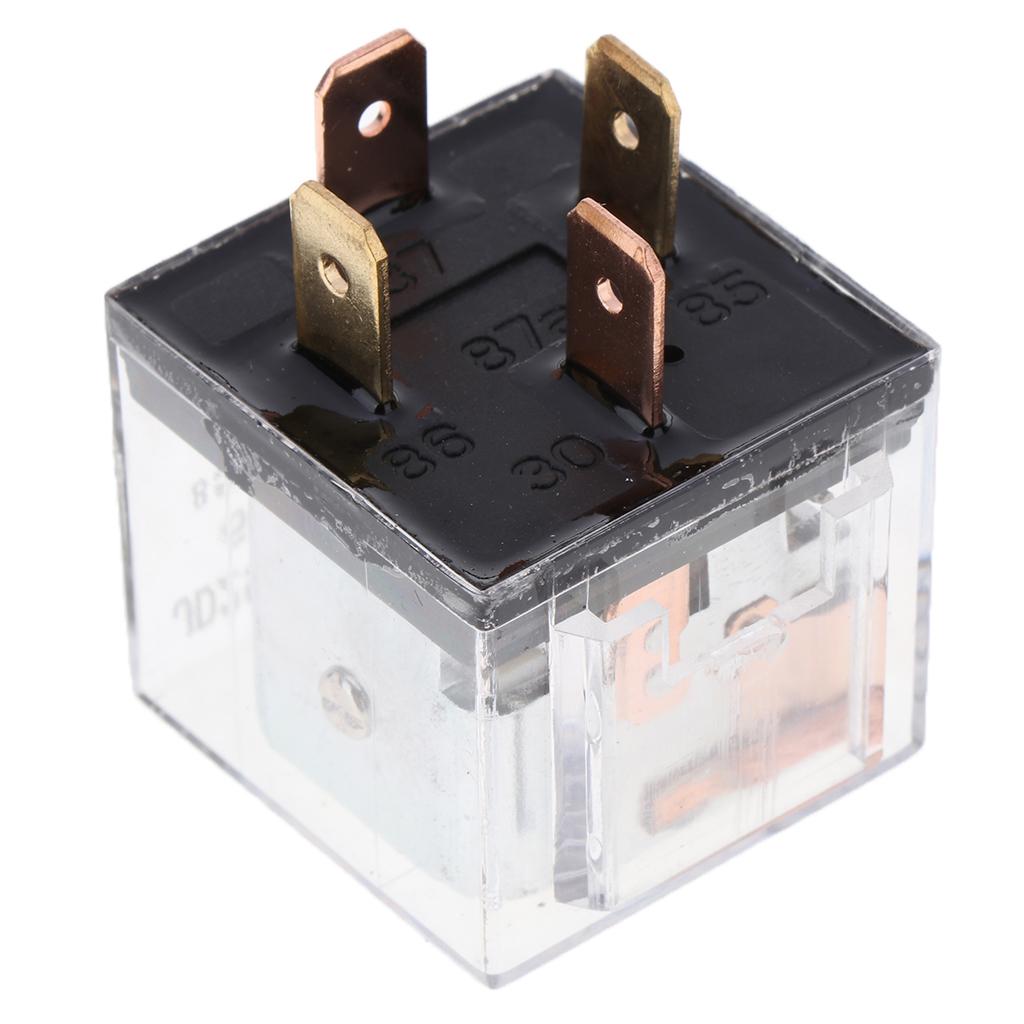

Max Maxb 4 Pins SPDT 60A Relay Auto Car Control Device Relay Socket Waterproof 12V

Description:

100% brand new and high quality.

4 Pins high-current welded connections for reliability.

High quality composite housings protect against harsh temperatures and severe under hood conditions.

Featuring brass or copper contacts, high capacity.

All parts are manufactured to stringent quality requirements.

Specification:

Material: Plastic

Standard contact forms are available: 1 set normally open, 1 set normally closed, 1 set converted, 2 sets normally open.

Operating temperature: -40 to +125 ° C

Contact form: 1a, 1c

Contact capacity: 1a/2a: 60A 14VDC 1b: 50A 14VDC 1c: 60A/50A 14VDC

Coil voltage: 12VDC, 24VDC, 48VDC

Coil power (W): 1.80

Contact resistance: ≤50mΩ

Insulation resistance: ≥1,00MΩ

Life (times): Electrical 1*100000 Machinery 1*10000000

Ambient temperature: -40 ° C ~ +125 ° C

Installation form: quick connect, socket type

Size Chart:

Size: Approx. 28x28x25mm/1.10x1.10x0.98inch

Package Includes:

1 Piece 4 Pin Car Control Device Relay
