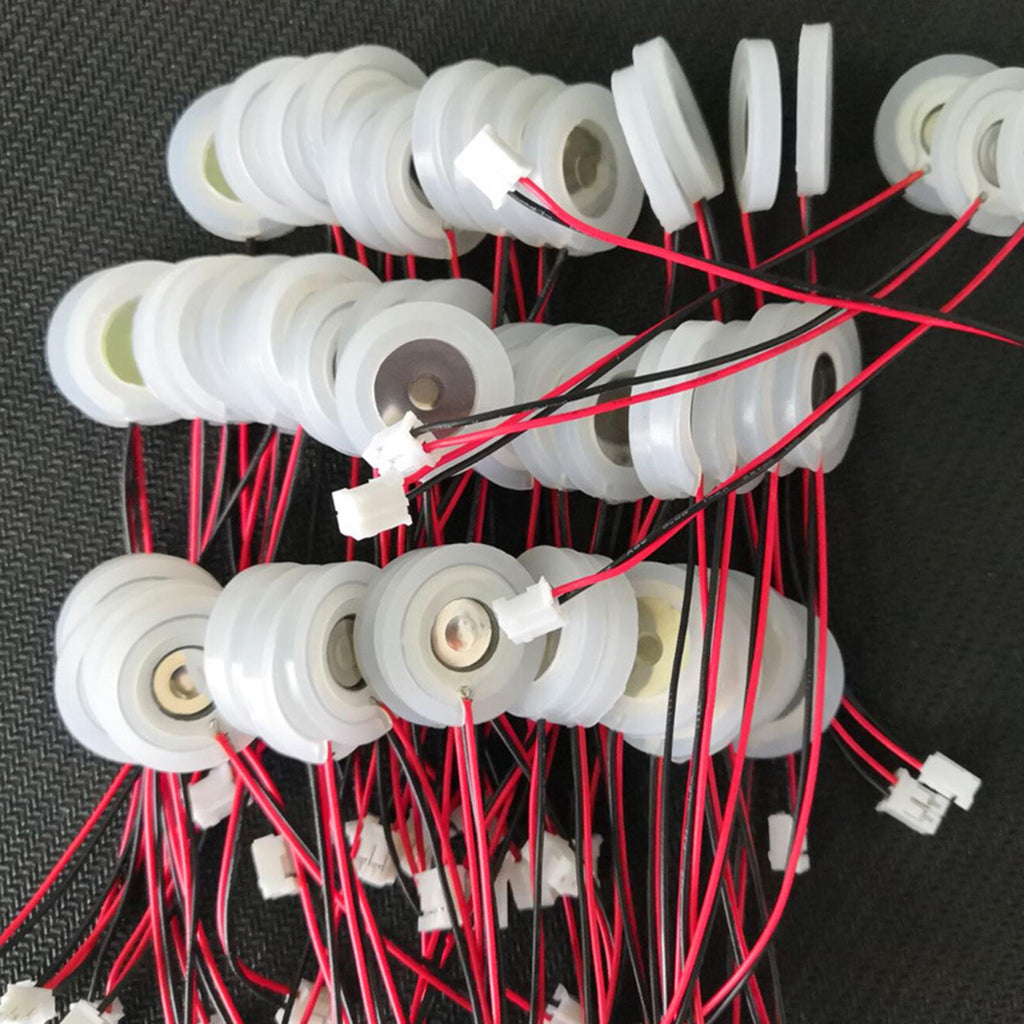

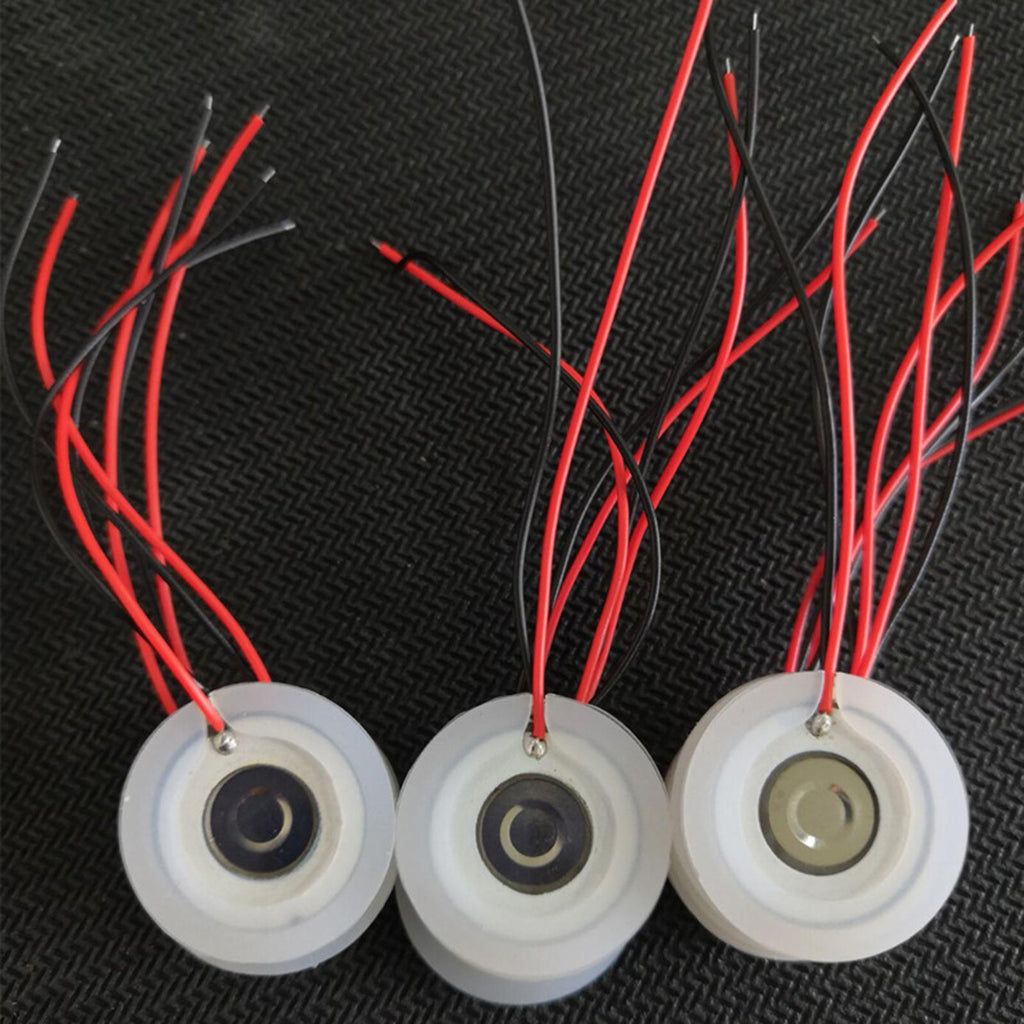

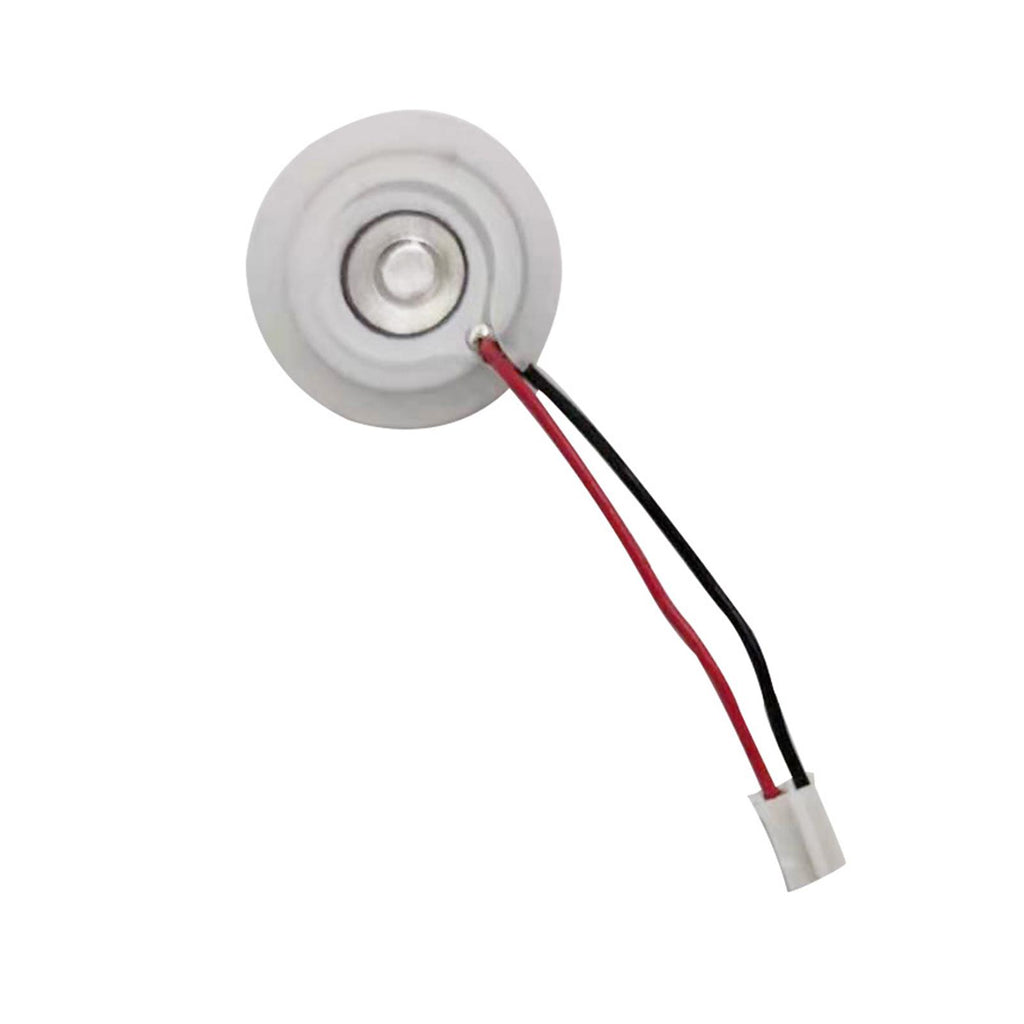

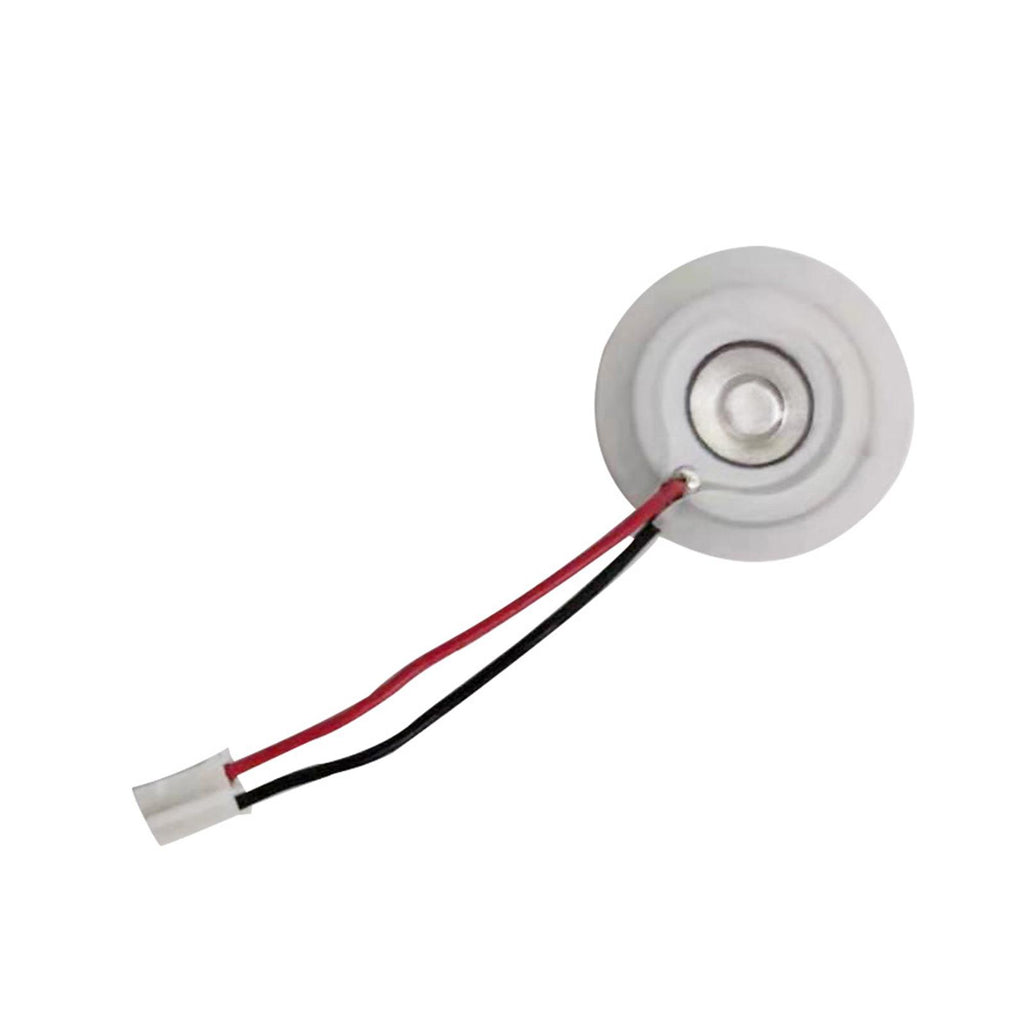

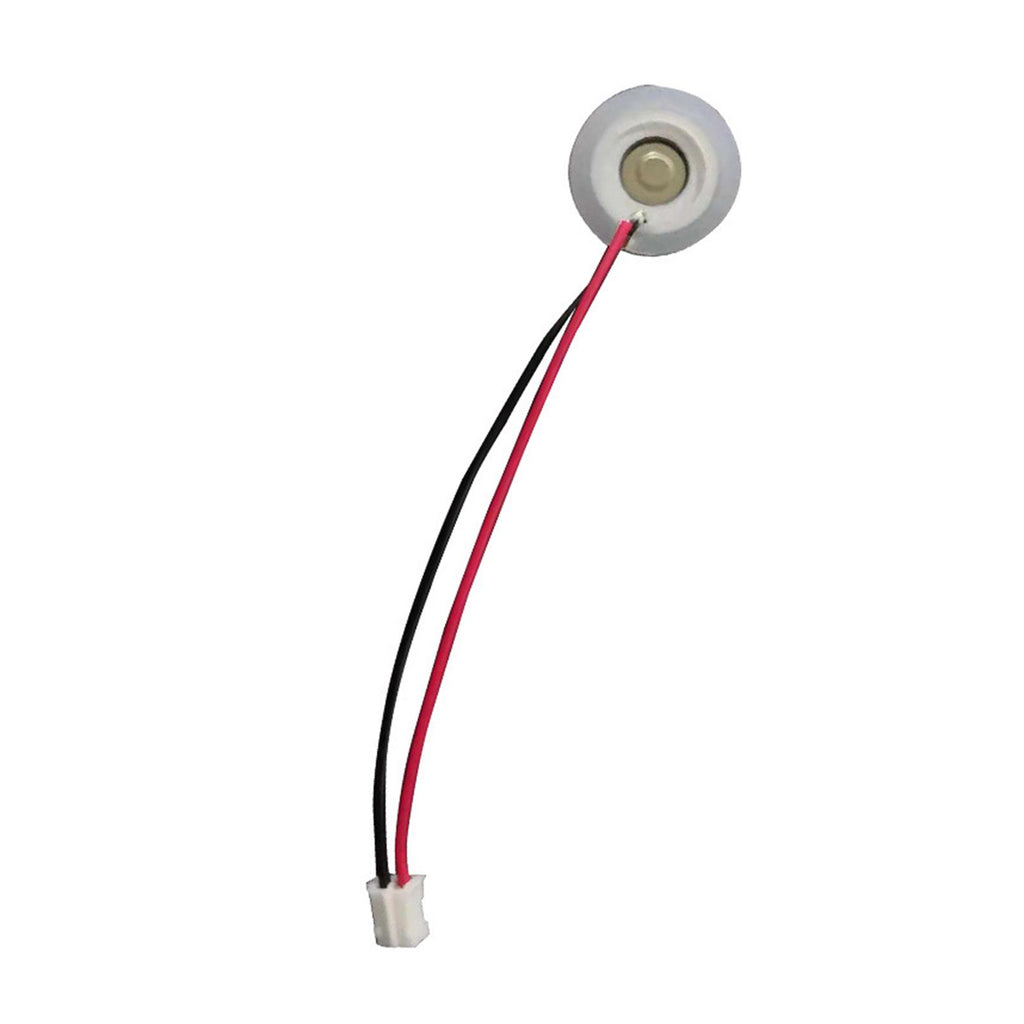

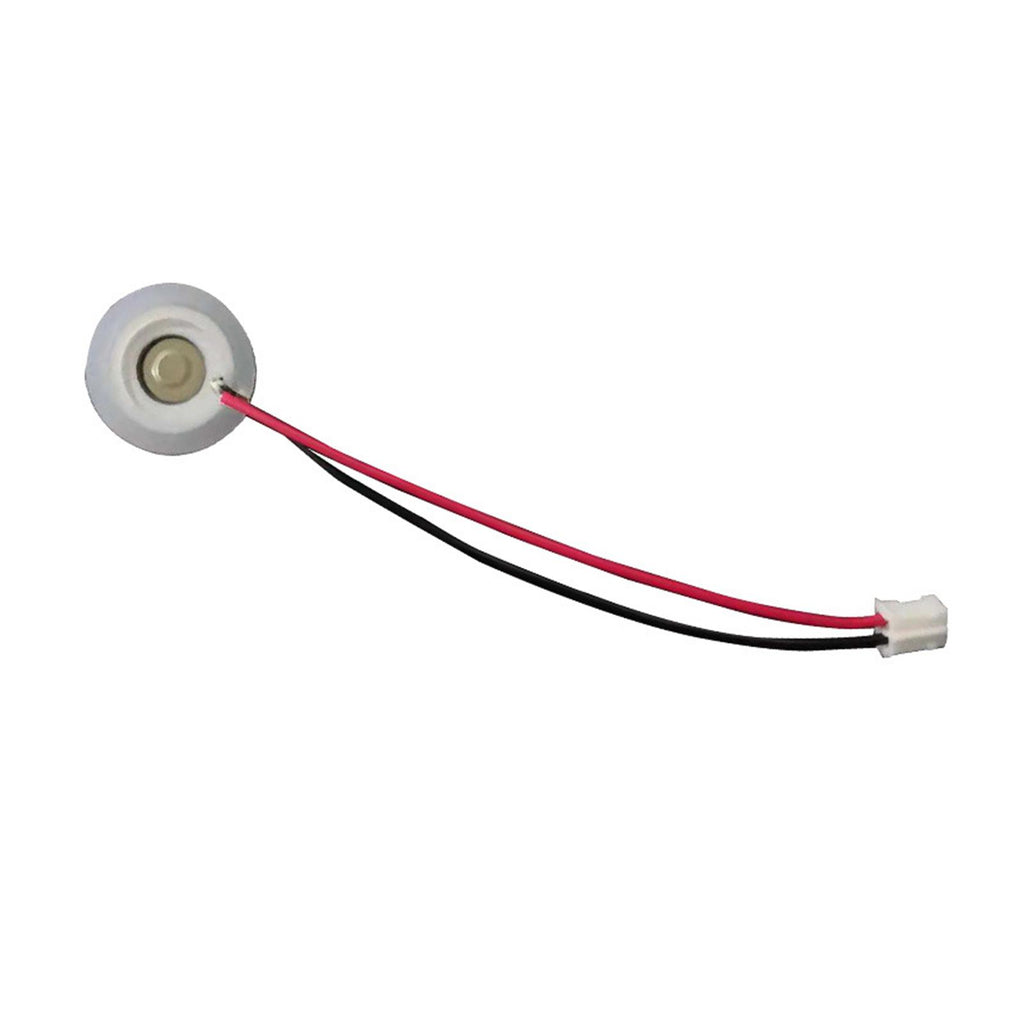

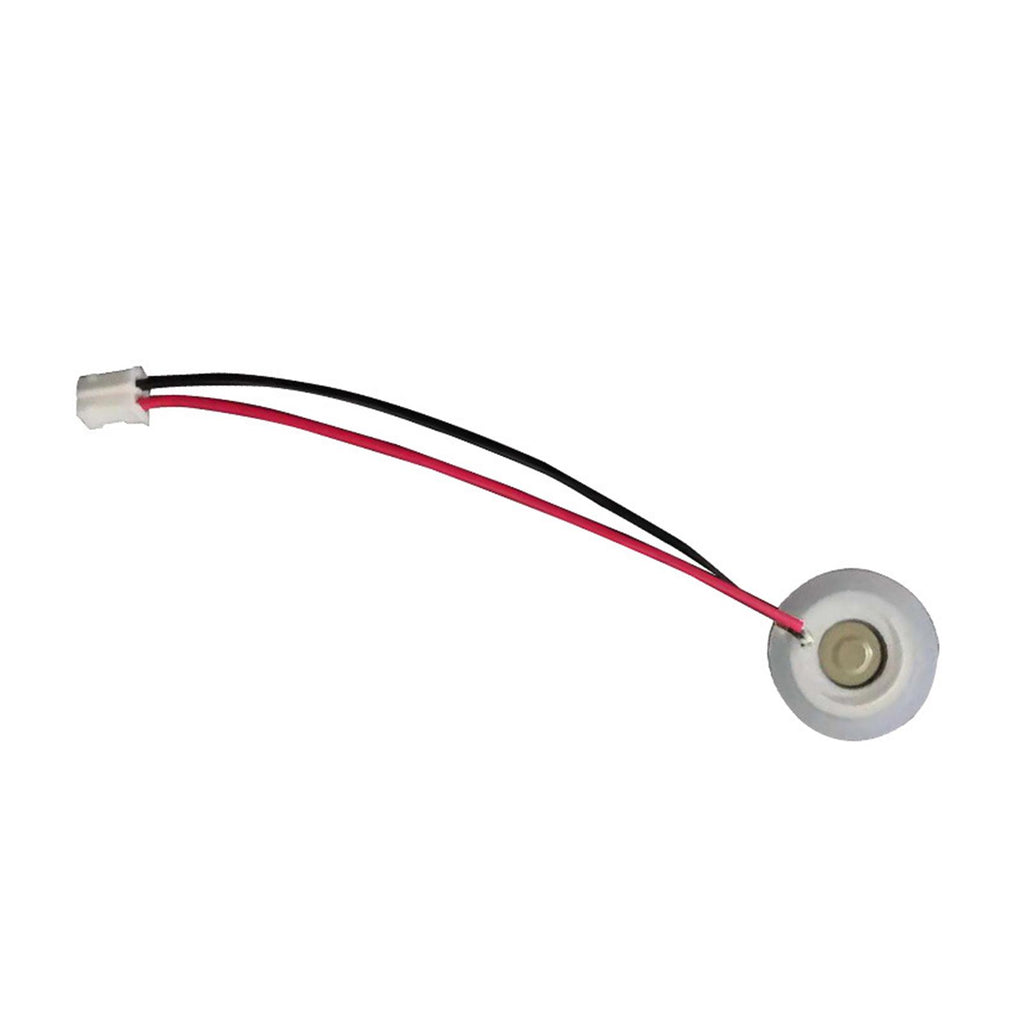

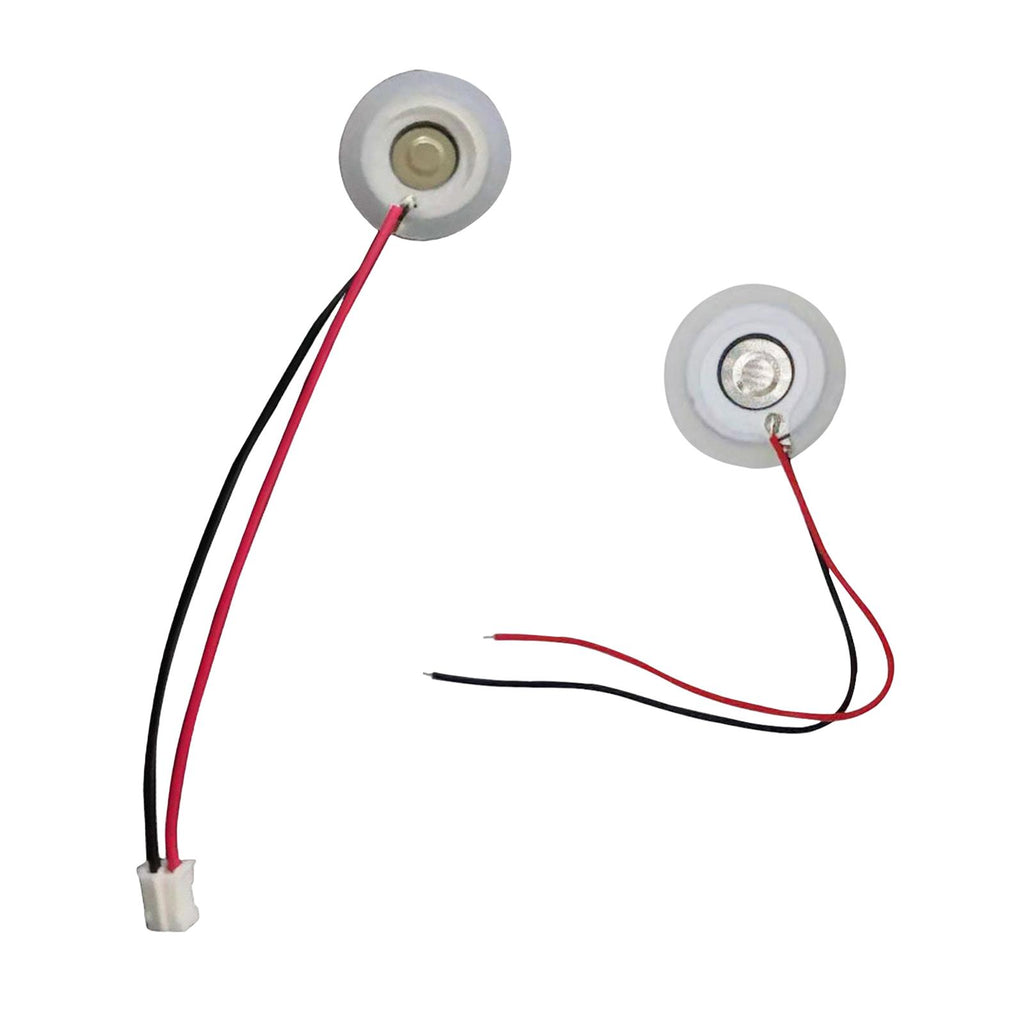

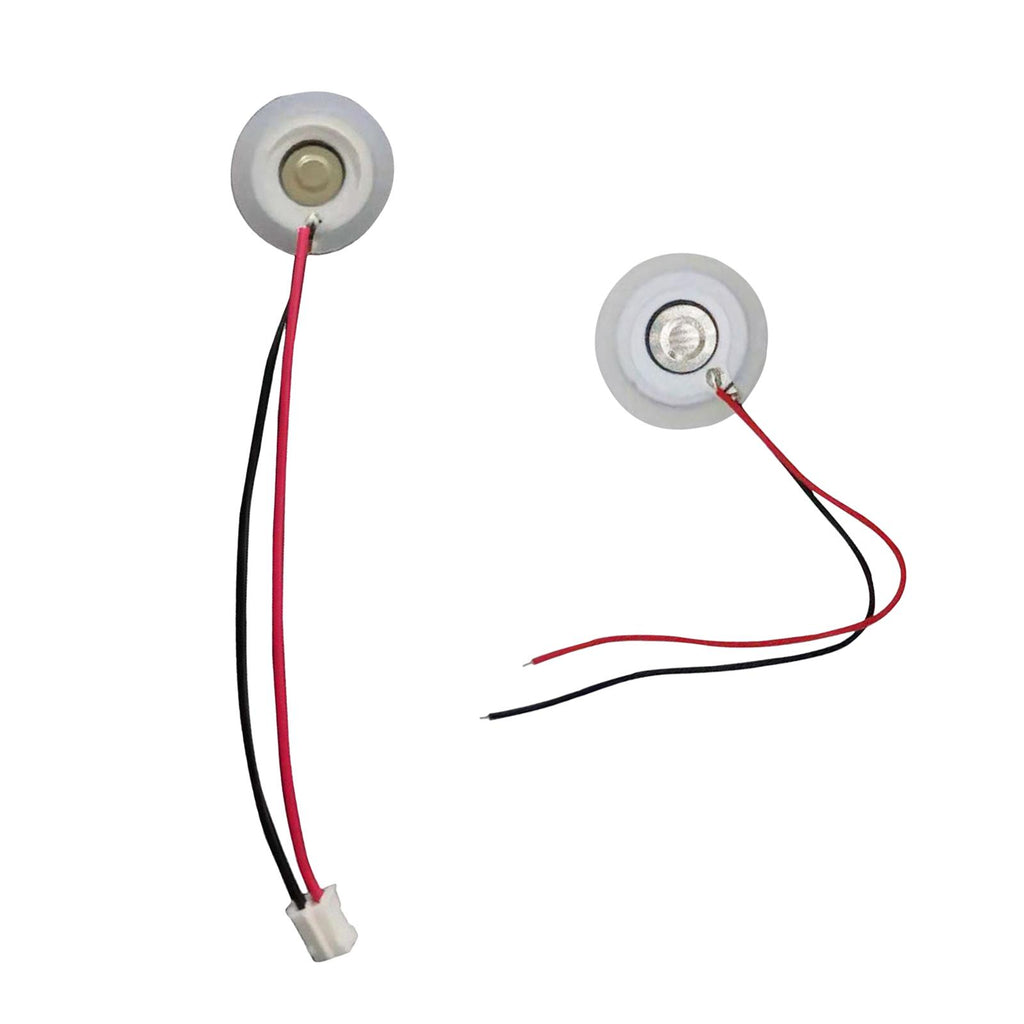

Maxbell 3xMist Maker Atomizer Film Plate Humidifier Atomization Plate Replacement With 2.0 Terminal

Description:

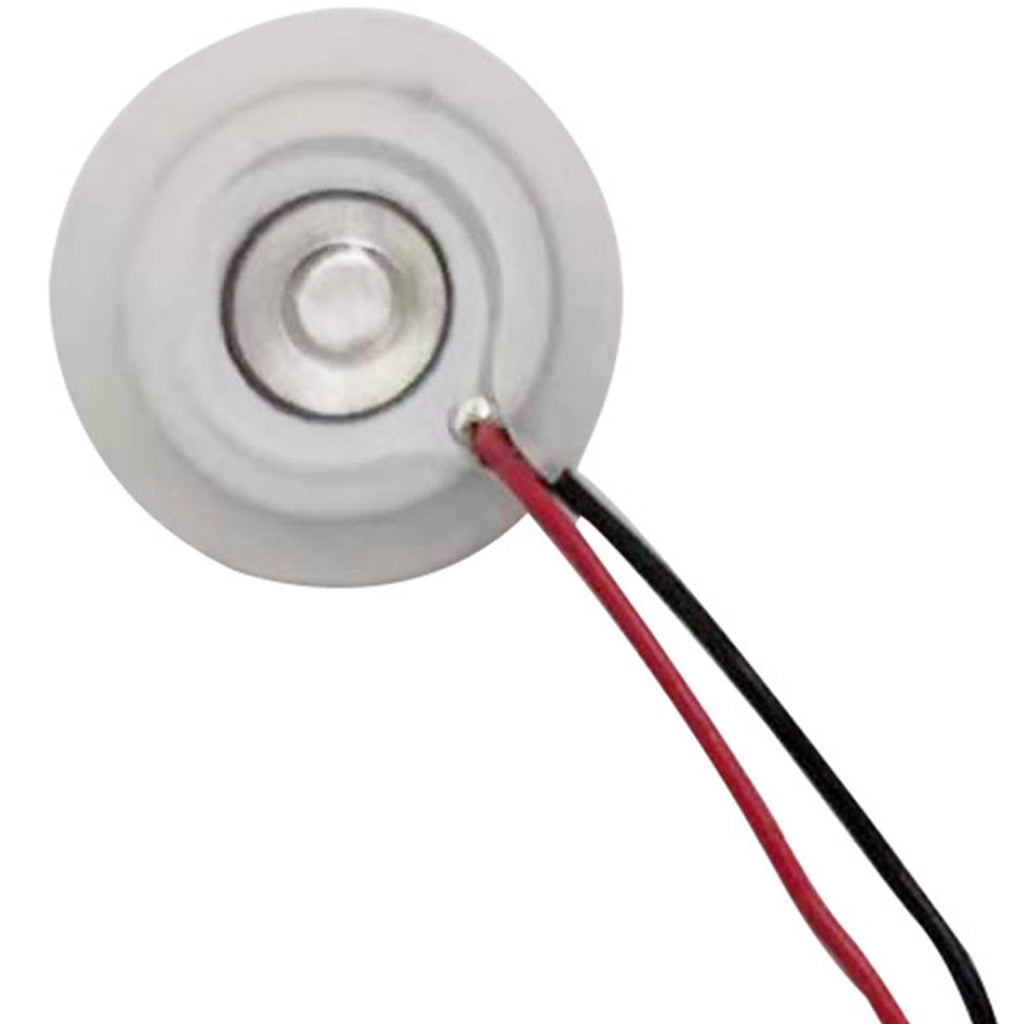

16mm Transducer: fine spray particles, large amount of atomization, high atomization height, no desktop.
Mist Maker Atomizer Film Plate: Low driving voltage, low power, low impedance, stable waveform, high conversion efficiency.
Low dielectric loss: low heat generation and long service life.
Features: Circular, intermediate spray, 5um fine spray , 1000 dense spray holes.

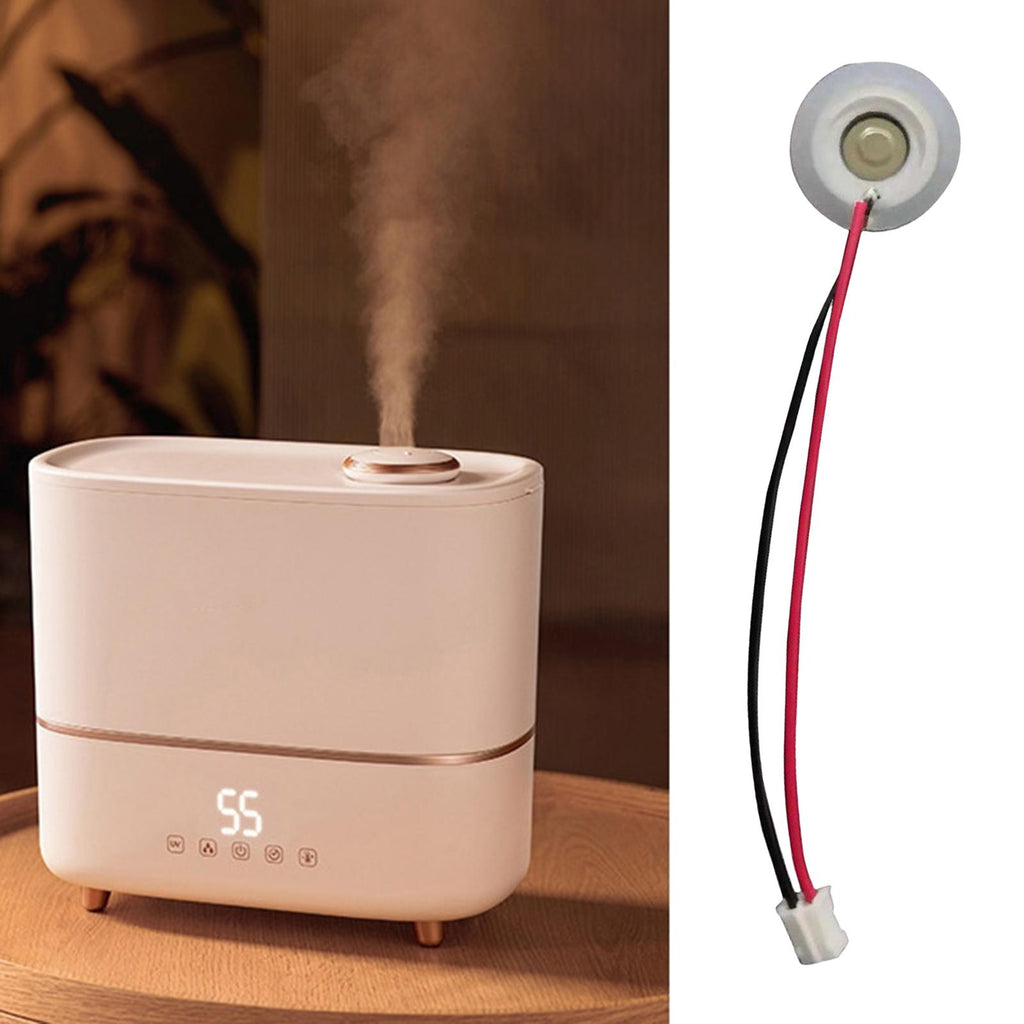

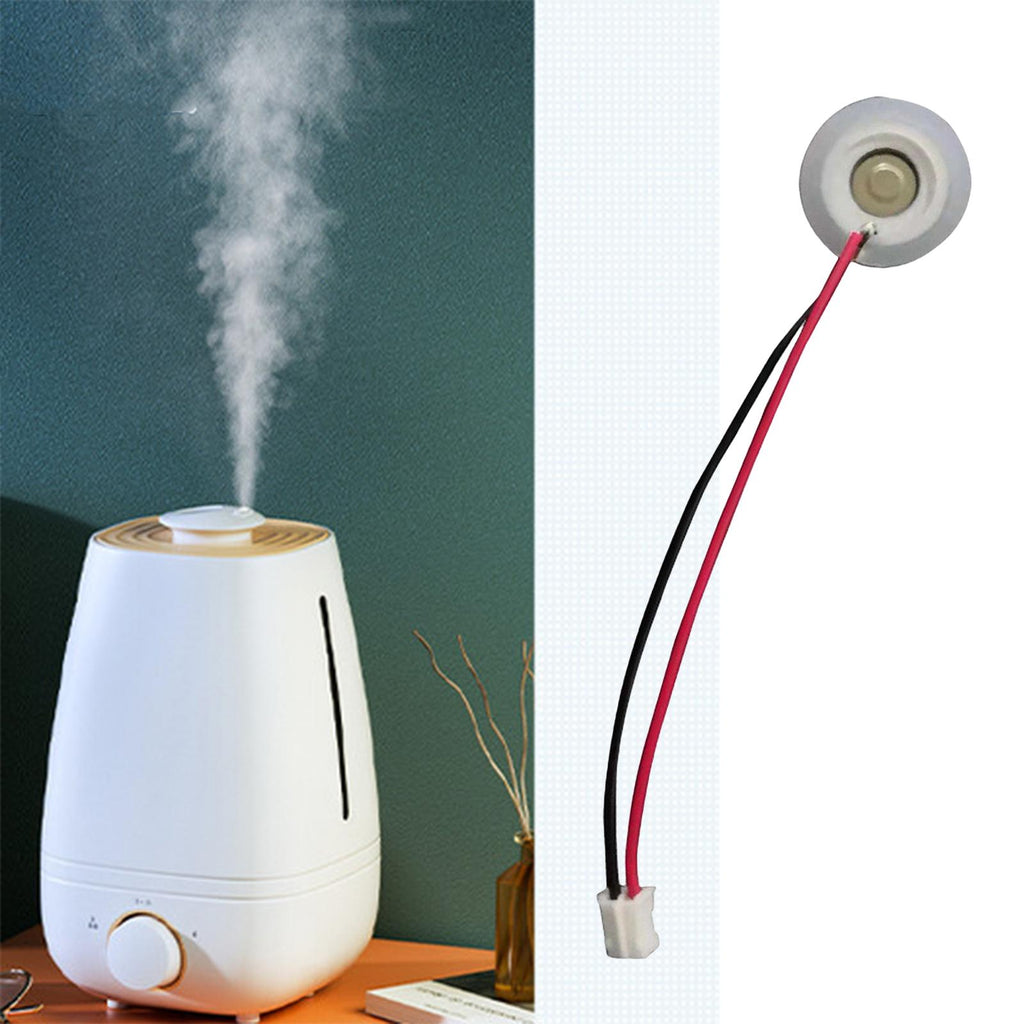

Humidifier Atomization Plate: The anti oxidation silver layer protects the coating process, and the service life is as long as 3000 hours.

Specification:

Resonant frequency: 108.0±5.0kHz
Resonant impedance: 150Ωmax
Static capacitance: 3000pF±20% at 1.0kHz
Input voltage: 5-12VDC
Rated voltage: 70Vp-p max
Input power: 2.5W max. (Normal use 1.5W)
Test environment: 23±3 Celsius 40-70%RH
Storage temperature: -30 Celsius-+80 Celsius
Life time: 3000hour
Atomization volume: 15-450ml/hour

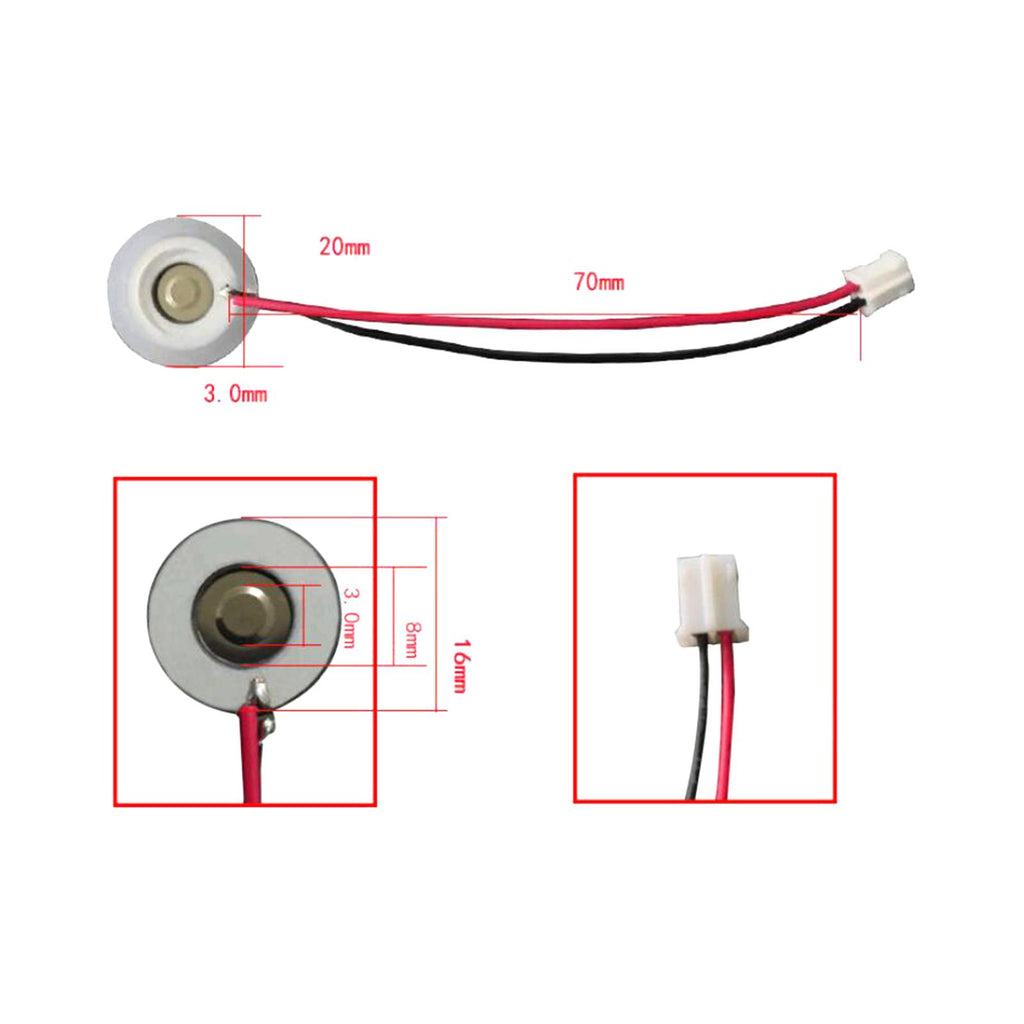

Size Chart:

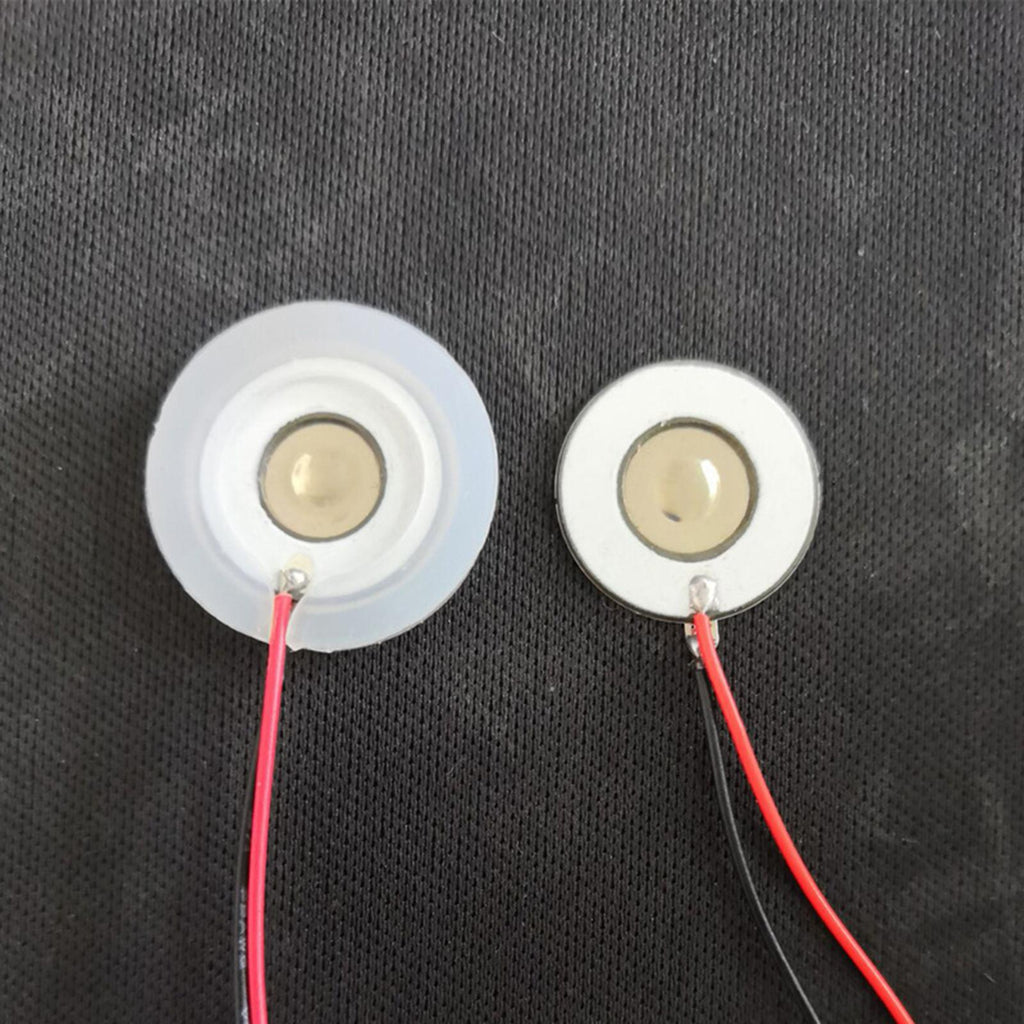

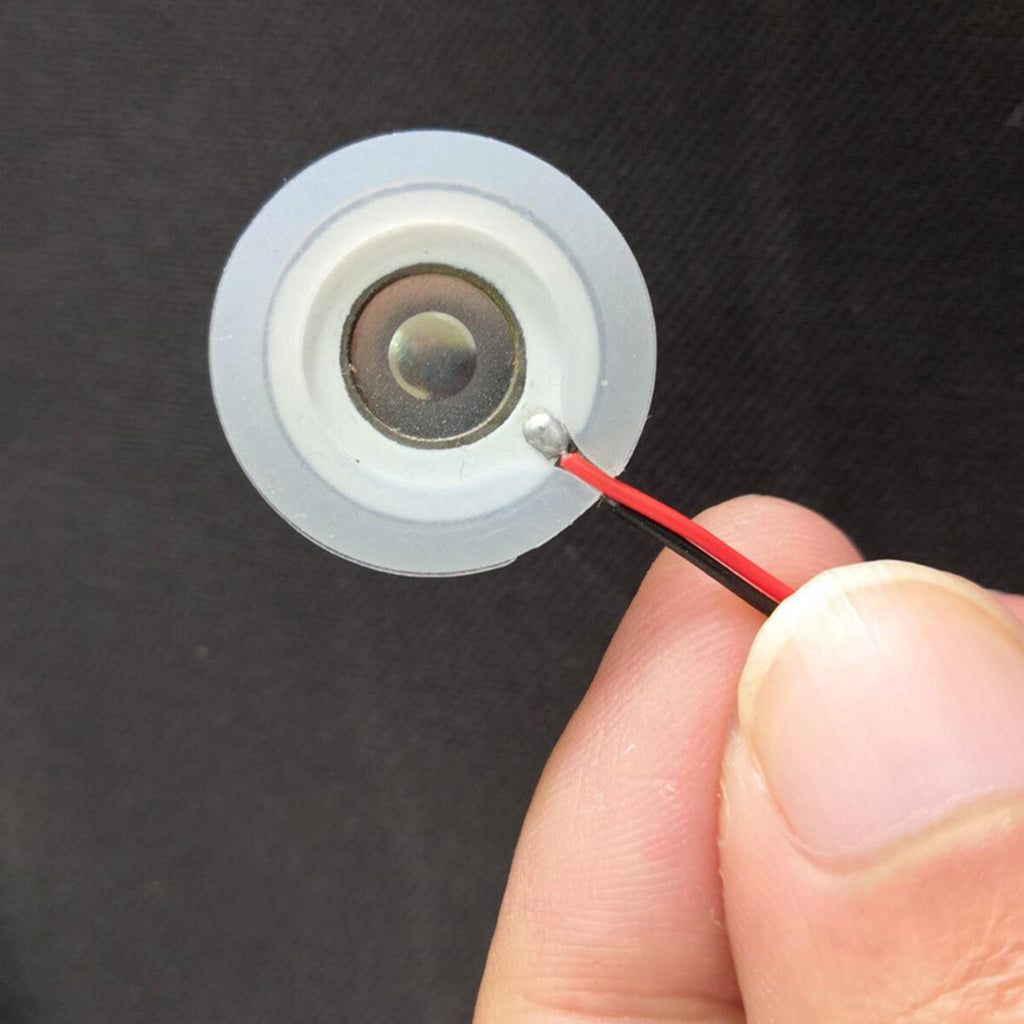

Atomizing Film: 16mm, Apron 20mm

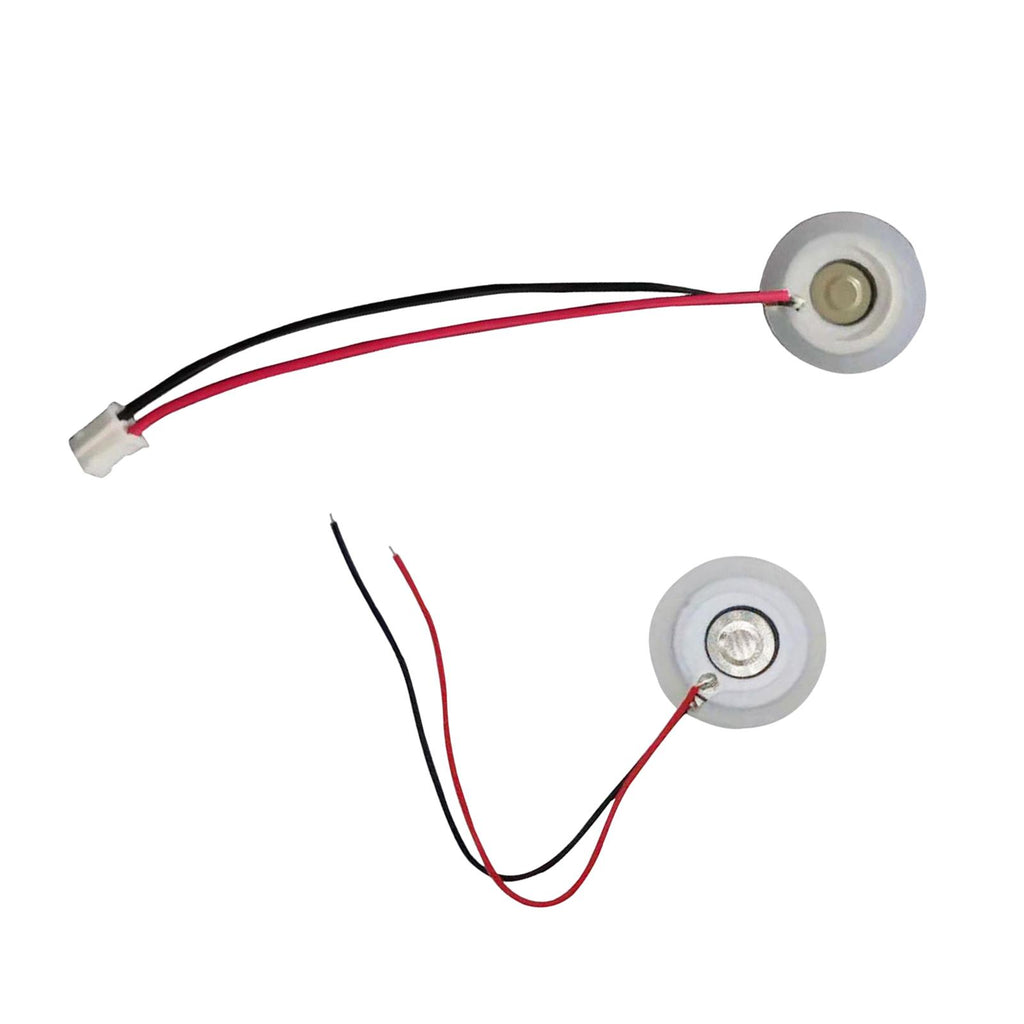

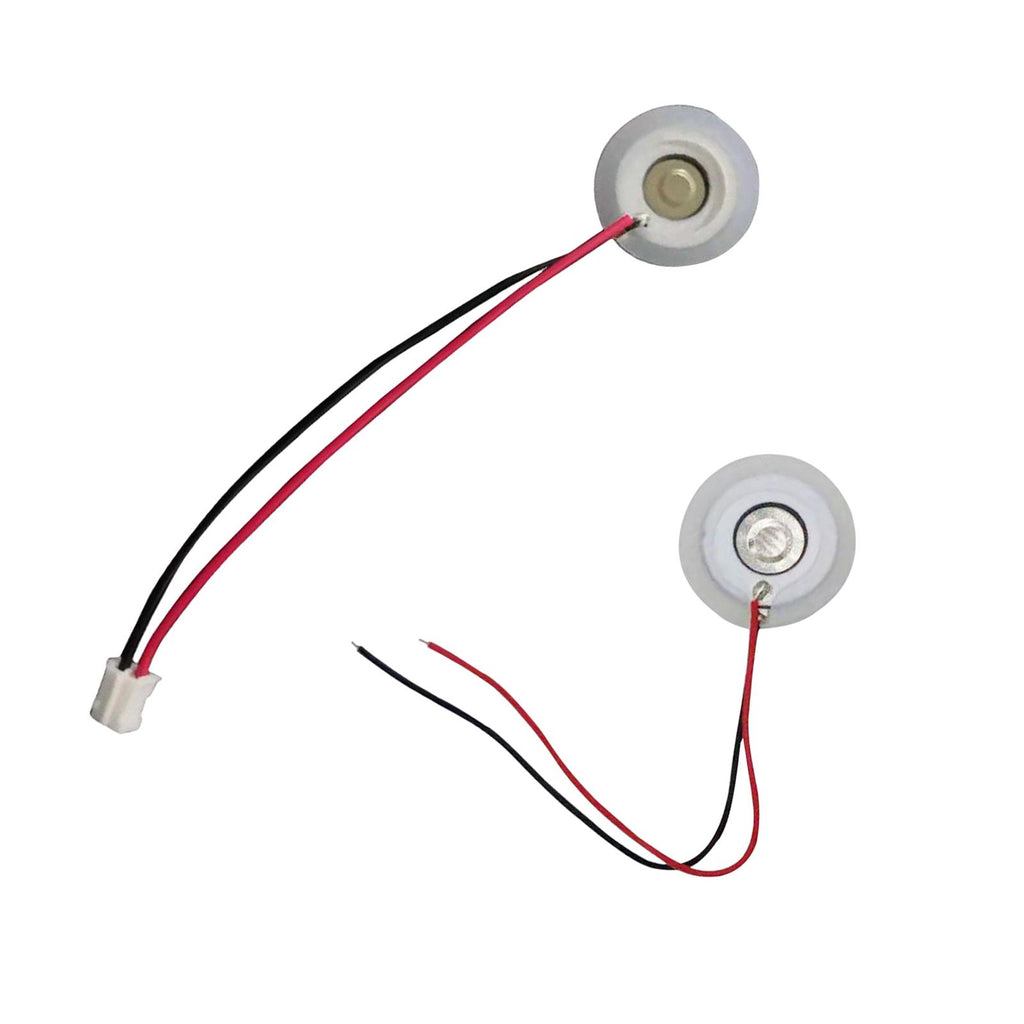

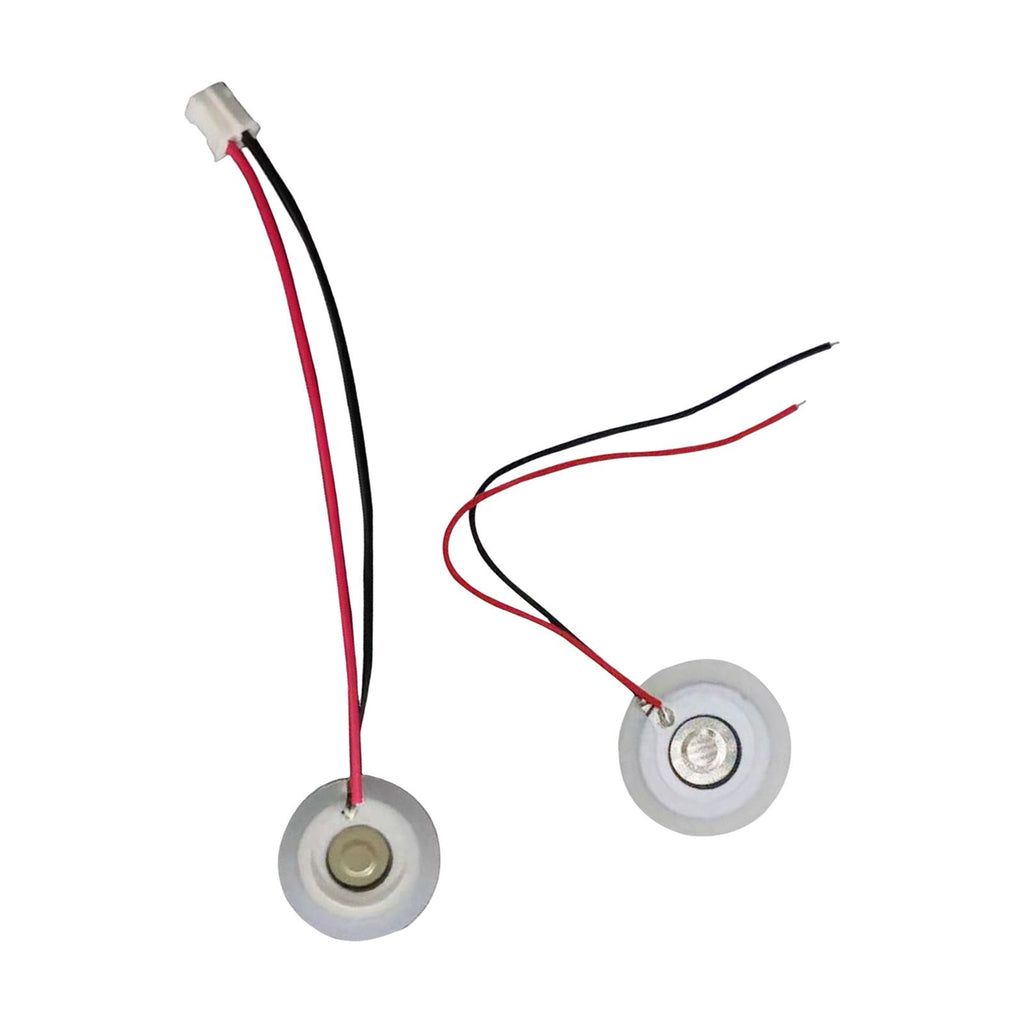

Port: Conventional Terminal 2.0mm (optional)
Product size: Wire Length 80mm

Package Includes:

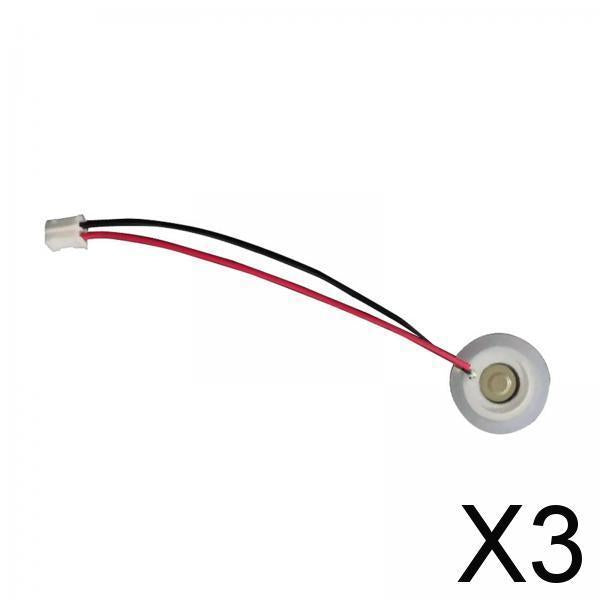

1Pc Mist Maker Atomizer Film Plate (3 Pack)

Note:

Please allow slightly errors due to manual measurement and different monitors.
