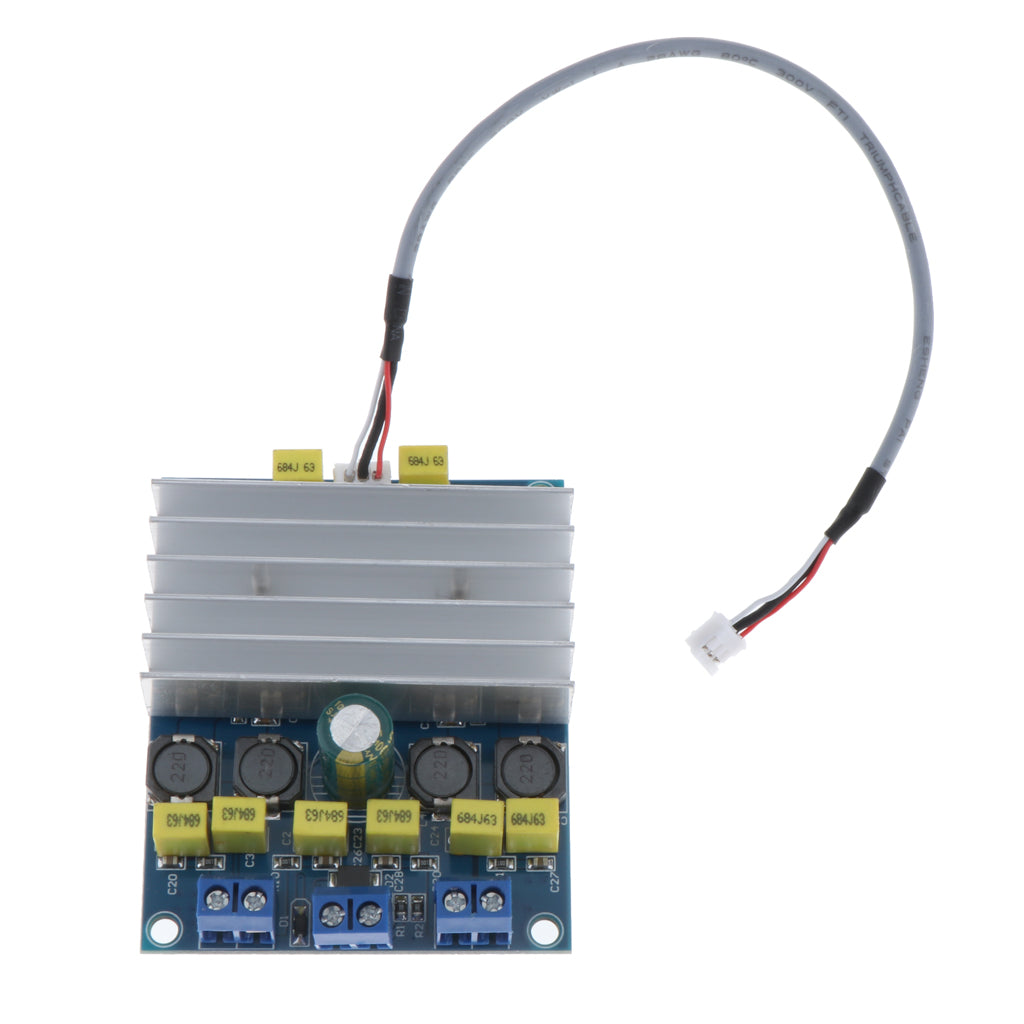

Maxbell 2 x 50W/100w TDA7492 D Class High-Power Digital Amplifier Board AMP Board+ Radiator
Rs. 1,893.00Rs. 3,785.00
Description:
Class D amplifier produces 2 x 50 watt @ 8 ohms
Can be wired R+ to L+ for mono mode
8" stereo wiring harness included
Short-circuit and over-temperature protection
With 4 model GAIN parts, can auto work on different voltage The use of high-speed SMT placement machine, over temperature reflow, the performance is very stable Comes with super output short-circuit and over-temperature overload and prevent the impact of the switch machine.
Specification:
Power supply: Single-voltage 10-26V DC.
Maximum power: 2x50W / 8 Ohms ;Mono BTL power: 100W / 4 Ohms .
Size: 70 x...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Class D amplifier produces 2 x 50 watt @ 8 ohms
Can be wired R+ to L+ for mono mode
8" stereo wiring harness included
Short-circuit and over-temperature protection
With 4 model GAIN parts, can auto work on different voltage The use of high-speed SMT placement machine, over temperature reflow, the performance is very stable Comes with super output short-circuit and over-temperature overload and prevent the impact of the switch machine.
Specification:
Power supply: Single-voltage 10-26V DC.
Maximum power: 2x50W / 8 Ohms ;Mono BTL power: 100W / 4 Ohms .
Size: 70 x 57 x 21mm .
Package Includes:
1 Piece Amplifier Board AMP Board with Radiator.
Note:
*When the speaker impedance is 4 ohms, the operating voltage must be less than 18V.
*When the speaker impedance is 6 ohms, the operating voltage can not exceed 24V.
*When the speaker impedance is 8 ohms, the working voltage can not exceed 26V. The power not to reverse the polarity.
