Max 2 Channel DC 12V Relay Module Two Panels Driver Board Module With Base
Rs. 1,391.00Rs. 2,782.00
Description:
Automatic SMT placement machine technology, high-end atmosphere
With anti-surge performance, protection relays and prolong life
Protection circuit action, when the power polarity wrong, components can not easily be burned
When the action for each channel indicator lights, relays removable, easy to replace
Coil voltage DC 12V, 24V are available from stock, the input signal points NPN and PNP, rated current 10A
Specification:
Product Input Signal: NPN
Product Coil Voltage: DC 12V
Product Rated Current: 10A
Product Output mode: Relay(NO)
Product Size: 72x47x72mm/28.3x18.5x28.3inch
Package Includes:
1 Piece Relay Control Module（With base)
Note:
When the line is connected to the right, LED light is on.....
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Automatic SMT placement machine technology, high-end atmosphere
With anti-surge performance, protection relays and prolong life
Protection circuit action, when the power polarity wrong, components can not easily be burned
When the action for each channel indicator lights, relays removable, easy to replace
Coil voltage DC 12V, 24V are available from stock, the input signal points NPN and PNP, rated current 10A
Specification:
Product Input Signal: NPN
Product Coil Voltage: DC 12V
Product Rated Current: 10A
Product Output mode: Relay(NO)
Product Size: 72x47x72mm/28.3x18.5x28.3inch
Package Includes:
1 Piece Relay Control Module（With base)
Note:
When the line is connected to the right, LED light is on..

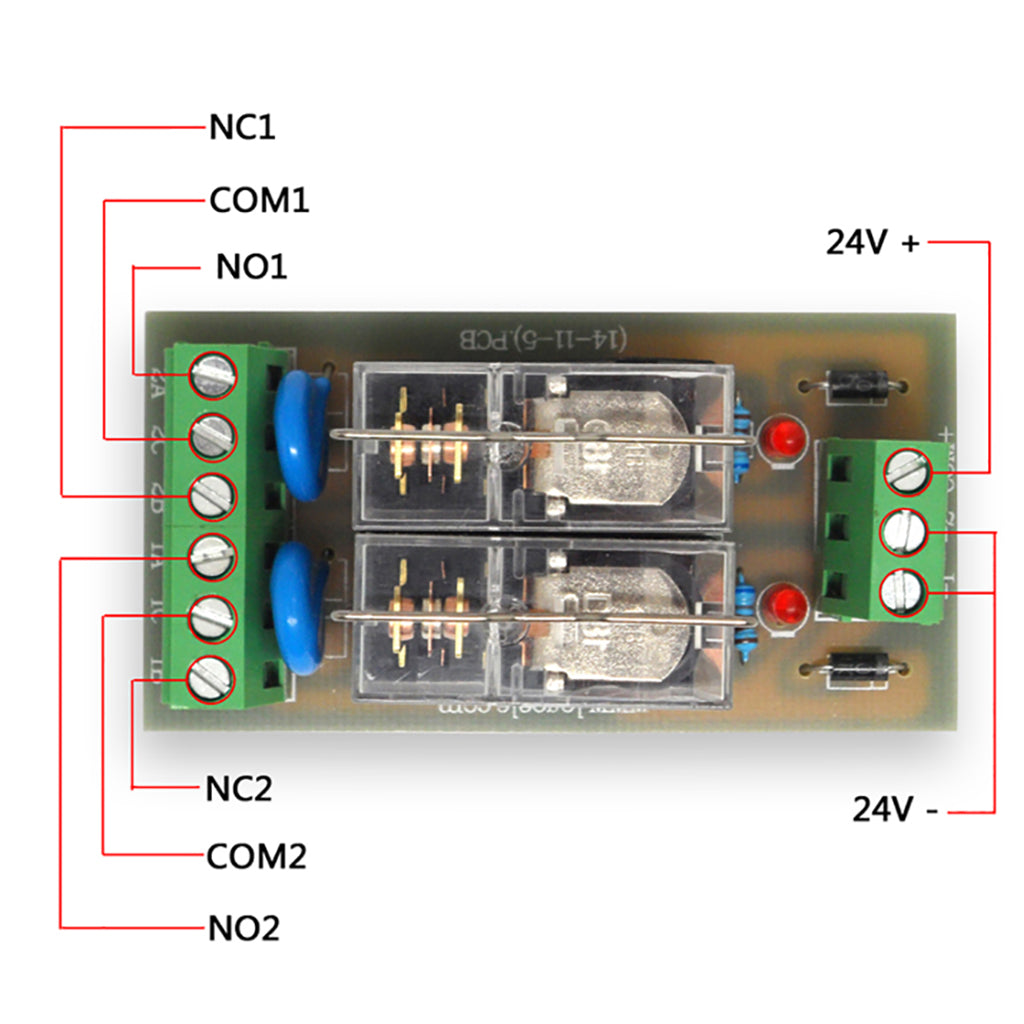

Relay output is connected in series
The LED lamp relay work lights, lights and pull relay, relay disconnect lamp
Customers can according to their own needs to meet in the NO or NC controlled load
