Maxbell 2.54mm 2P-Pitch Dupont Connector Terminal to 2 Row 6 Pin Header Female/Male Board
Description:
2.54mm DuPont Adapter Module
Mounting hole diameter: 2mm/0.078 inch; Dimension: 30x15mm/1.18x0.59inch
This module can divert output current from battery box to 6 pairs of pin headers.
The pin header can be directly connected to the DuPont line to supply power to MCU or sensor.
The blue terminal is used to connect the positive and negative wires and the DuPont pin is used for shunting.
Mode of Connection:

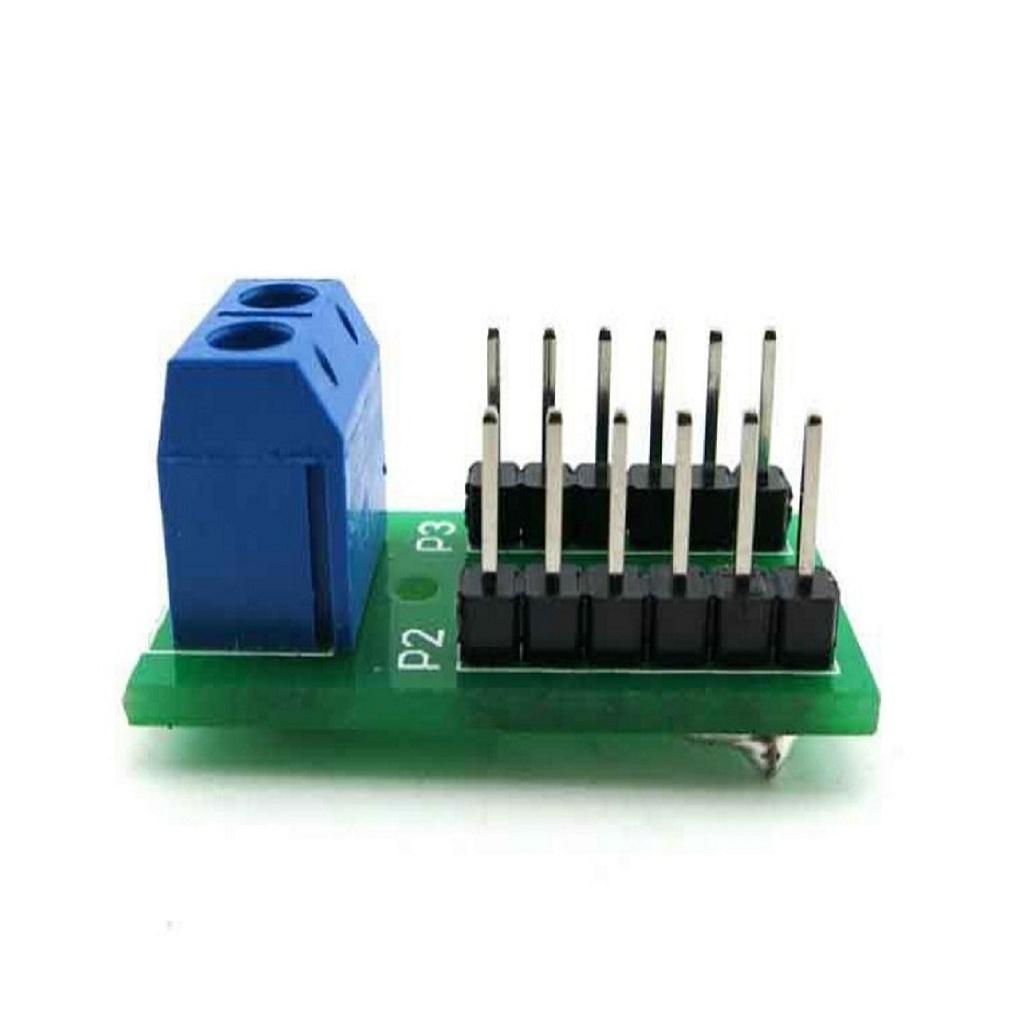

The P1 port is a blue 2 bits terminal block; P2 and P3 is for 6 pin headers. The first bit of P1 is connected to the 6 pin headers of P2 and the second bit of P1 is connected to the 6 pin headers of P3.

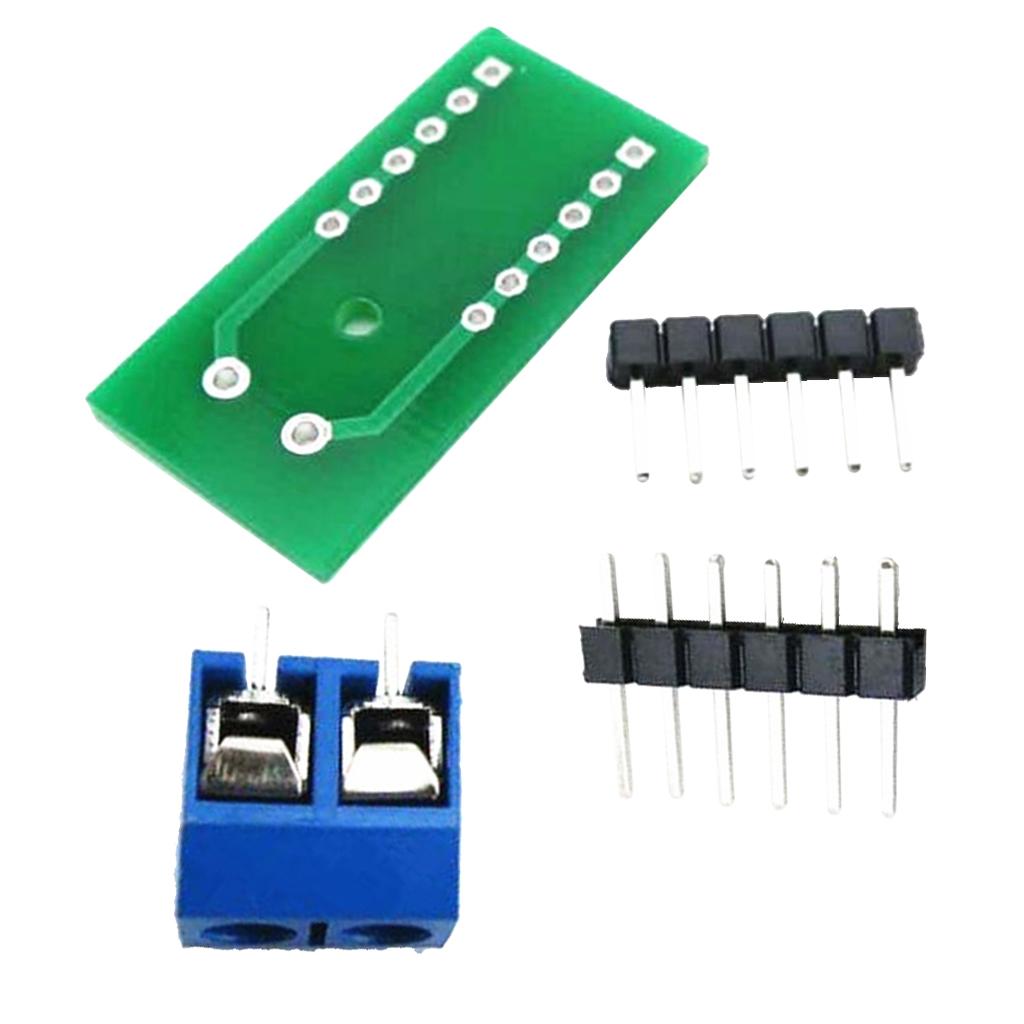

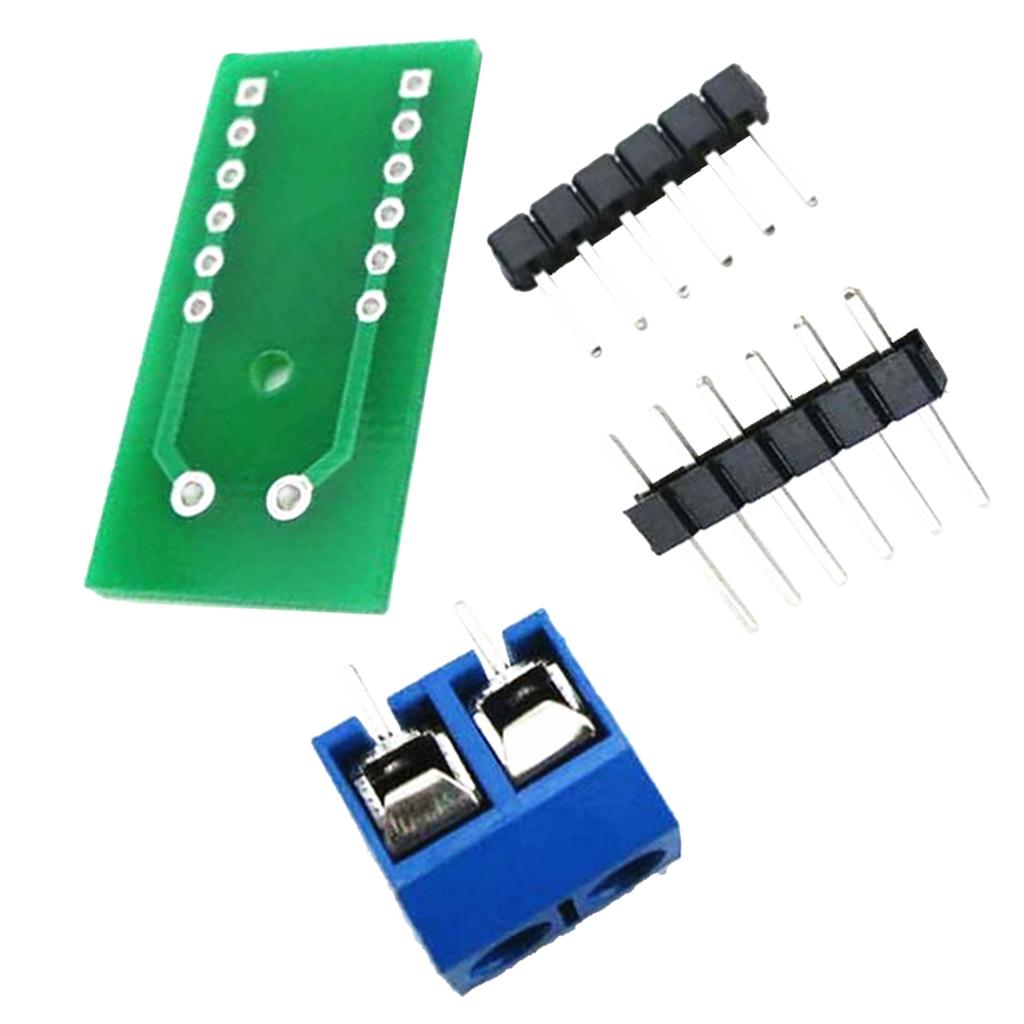

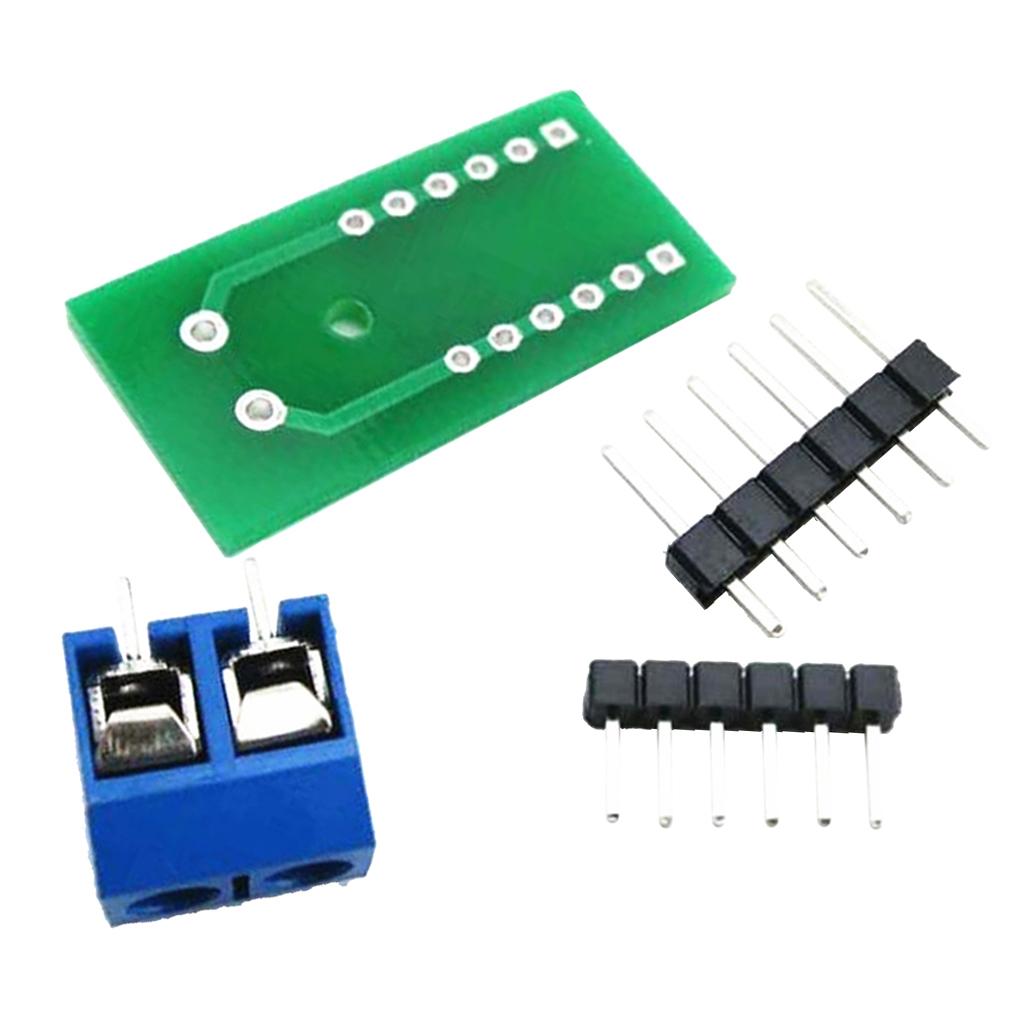

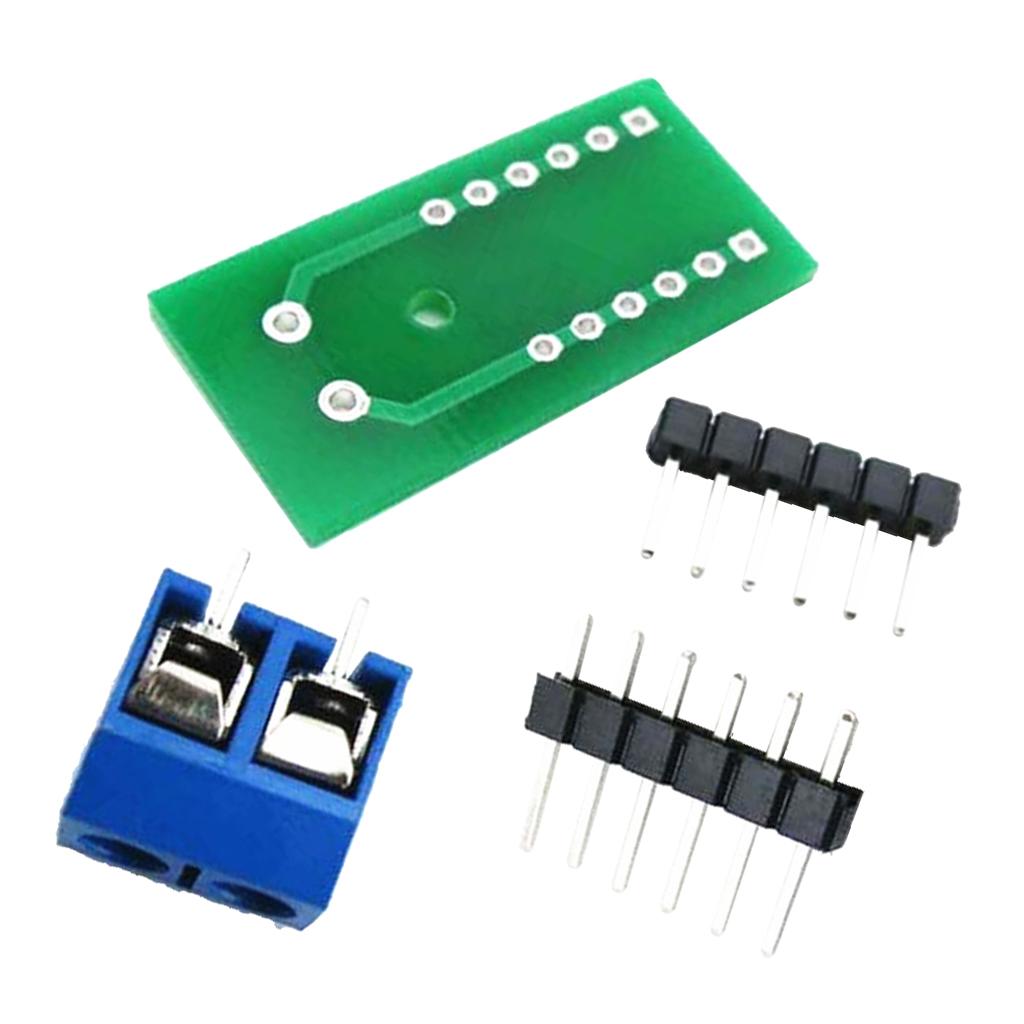

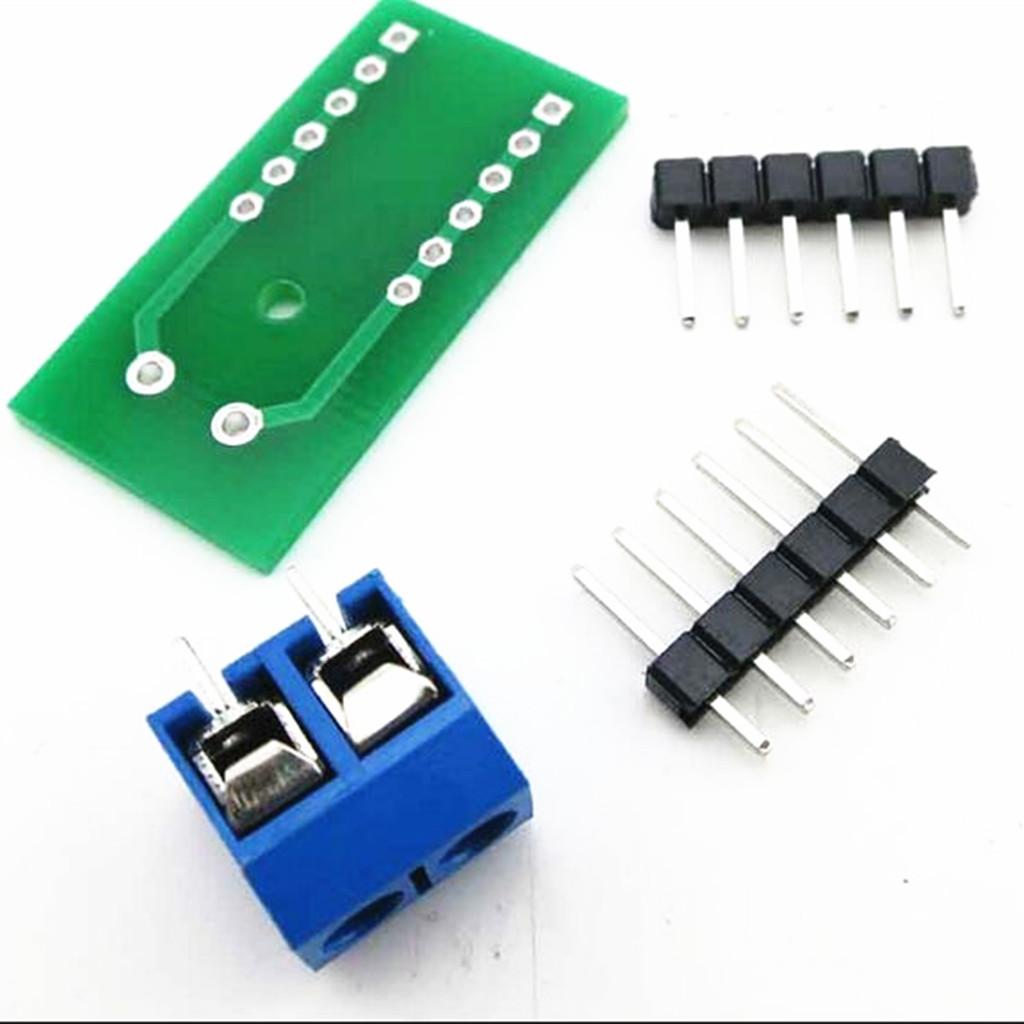

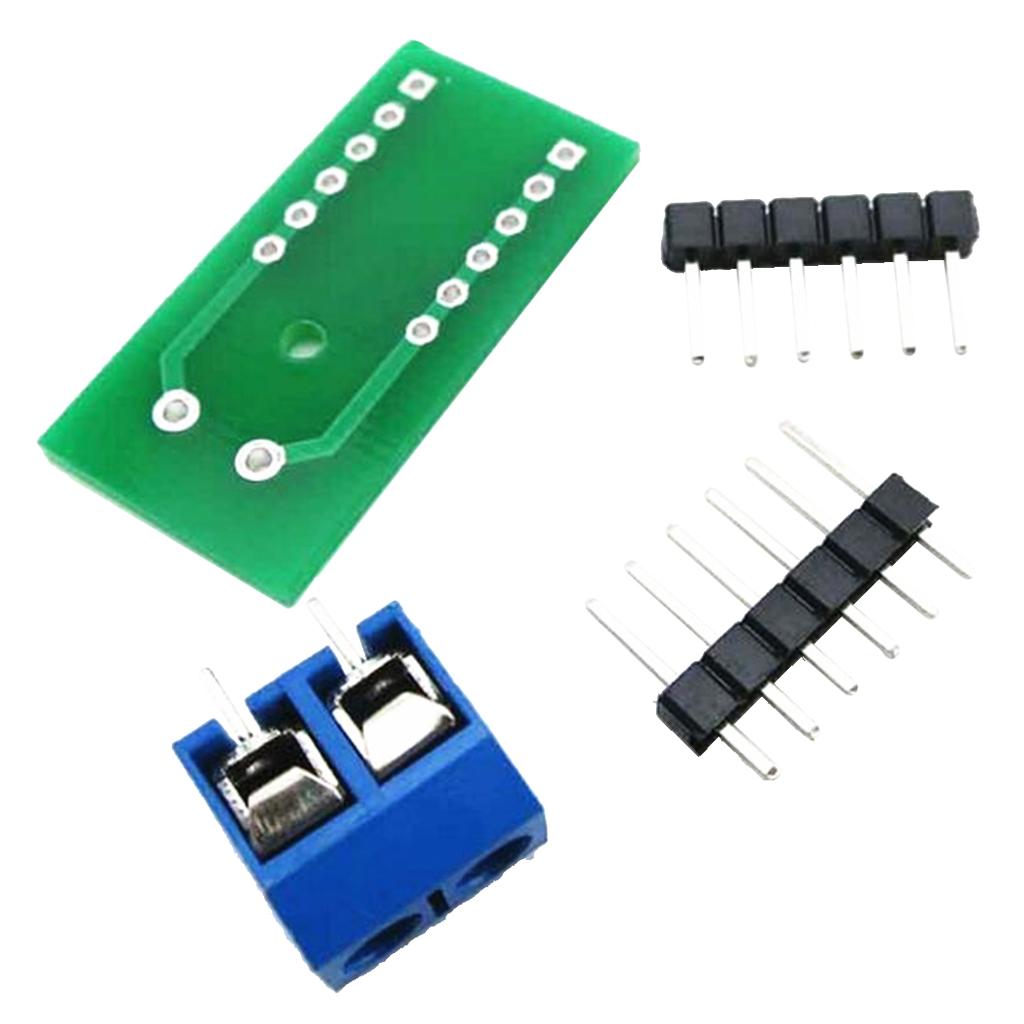

Package Includes:
1 piece DuPont pinboard
1 piece DuPont terminal
2 piece DuPont pin headers
Note:
Customers need to weld the module by yourself.
