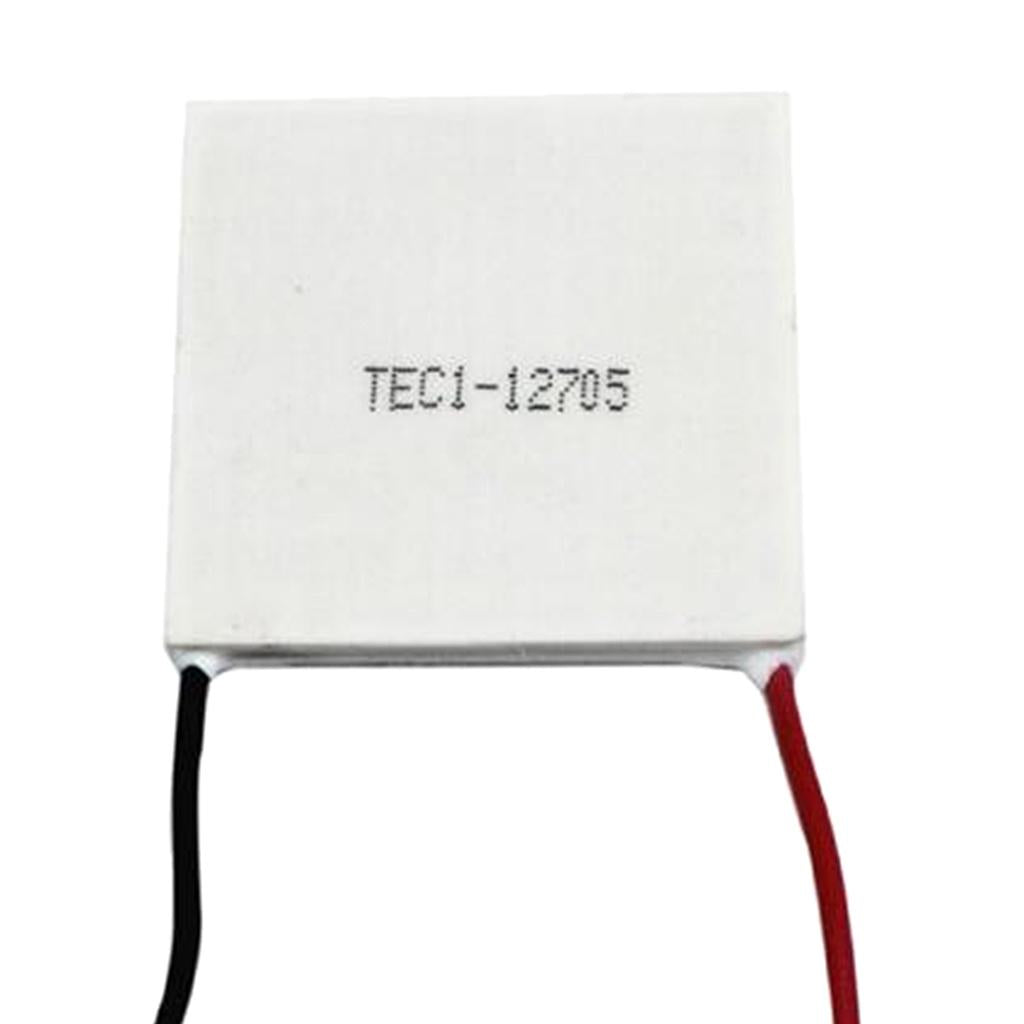

Max Maxb 1pc TEC1-12705 5A Heatsink Generator Thermoelectric Cooling Peltier 40x40mm
Rs. 1,092.00Rs. 2,184.00
Description:
TEC1-12705 Thermoelectric Cooler Cooling Plate Module 12V 5A
Small size, light weight, no noise.
For Drinking Water Machine of Vehicle Refrigerator.
Semiconductor coolers are a form of solid state cooling that incorporates both semiconductor technologies and electronic assembly techniques.
The cooling sheet is made up of a double-sided ceramic panel and a semiconductor material through a combination of low-melting solder.
Specification:
Type number: TEC1-12705
Size: 40 x 40 x 3.8 mm / 1.57 x 1.57 x 0.15inch
Conductor L(MM): 100 mm (±5mm)
Resistance: 2.4-3.0Ω
Particles: 127
Tmax(Qc=0): up to 61°C
Imax=5A, DC12V（Vmax：15.5V）
Cooling power :Qcmax 45W
U=standard(V): 12V
Pressure=kg/cm2: 85N/cm2
Operates Temperature: -55～83°C
Package Includes:
1pc Thermoelectric Cooler
Note:
It...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
TEC1-12705 Thermoelectric Cooler Cooling Plate Module 12V 5A
Small size, light weight, no noise.
For Drinking Water Machine of Vehicle Refrigerator.
Semiconductor coolers are a form of solid state cooling that incorporates both semiconductor technologies and electronic assembly techniques.
The cooling sheet is made up of a double-sided ceramic panel and a semiconductor material through a combination of low-melting solder.
Specification:
Type number: TEC1-12705
Size: 40 x 40 x 3.8 mm / 1.57 x 1.57 x 0.15inch
Conductor L(MM): 100 mm (±5mm)
Resistance: 2.4-3.0Ω
Particles: 127
Tmax(Qc=0): up to 61°C
Imax=5A, DC12V（Vmax：15.5V）
Cooling power :Qcmax 45W
U=standard(V): 12V
Pressure=kg/cm2: 85N/cm2
Operates Temperature: -55～83°C
Package Includes:
1pc Thermoelectric Cooler
Note:
It is a fragile material.Users must take it lightly.
