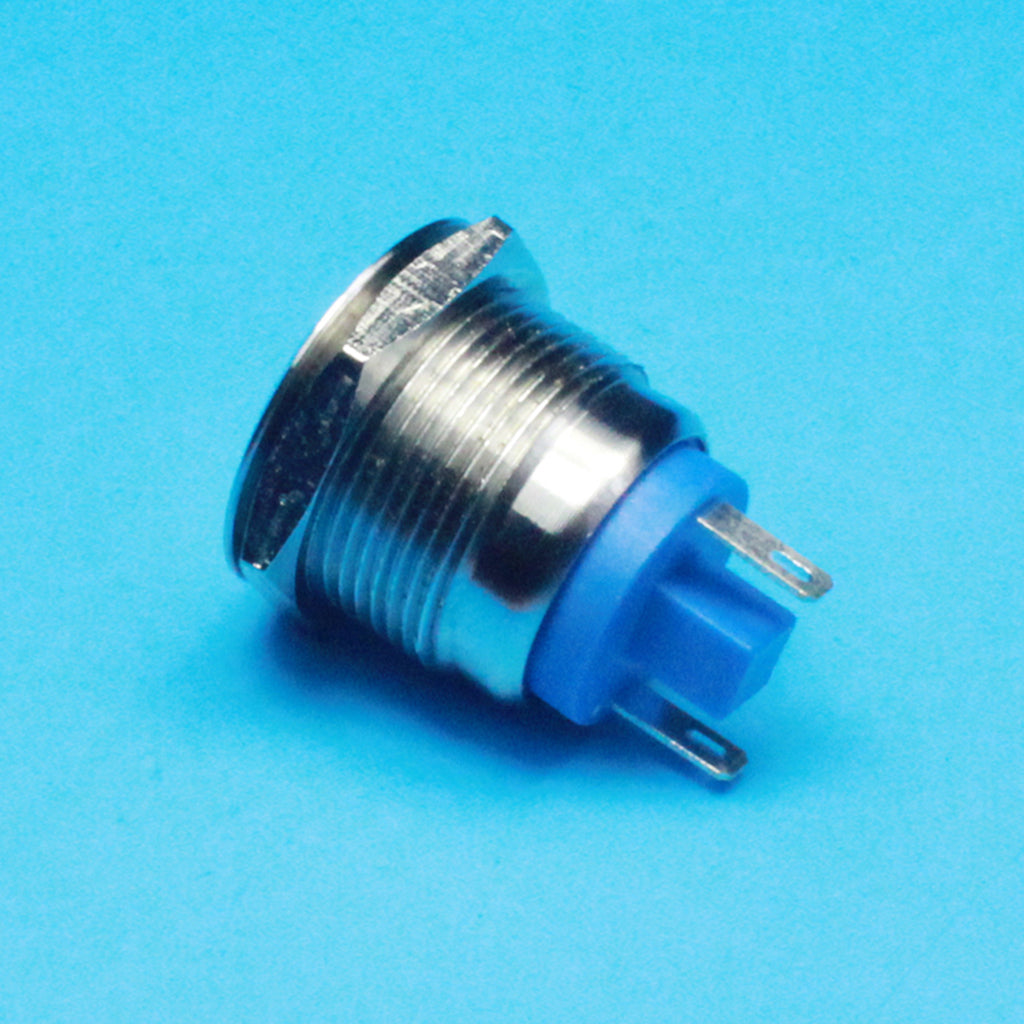

Maxbell 19mm Flat Waterproof Momentary Type Stainless Steel Metal Push Button Switch 250V 3A 1NO SPST

Description:

Momentary Type: Resetable [Push & Hold ON, Release OFF],mechanical life for 500,000 cycles.
Mounting hole size: 19mm; Head Diameter: 22mm; Depth (Including Contacts): 28mm.
Switch Rating: 3A/250AC, Switch Combination : 1NO
Head shape: Flat ; Enclosure material: Stainless Steel, Degree of protection: IP67, IK10
High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment.

Specification:

• Switch Rating: 3A/250VAC
• Contact resistance: ≤50mΩ
• Insulation resistance: ≥1000mΩ
• Dielectric intensity: 2000VAC
• Operation Temperature: -20℃ ~ +55℃
• Mechanical life: 500,000 cycles
• Electrical life: 50,000 cycles
• Panel thickness: 1 - 10mm
• Nut torque: 5 - 14Nm
• Operation pressure: About 4N
• Operation stroke: About 2.5mm
• Operation Type: Momentary
• Switch Contact: 1NO (Normally Open)
• Head Shape: Flat
• Body Material: Stainless Steel
• Button Material: Stainless Steel
• Base: PA66
• Color: Silver / Chrome

Package Includes:

1 Piece Momentary Push button switch
