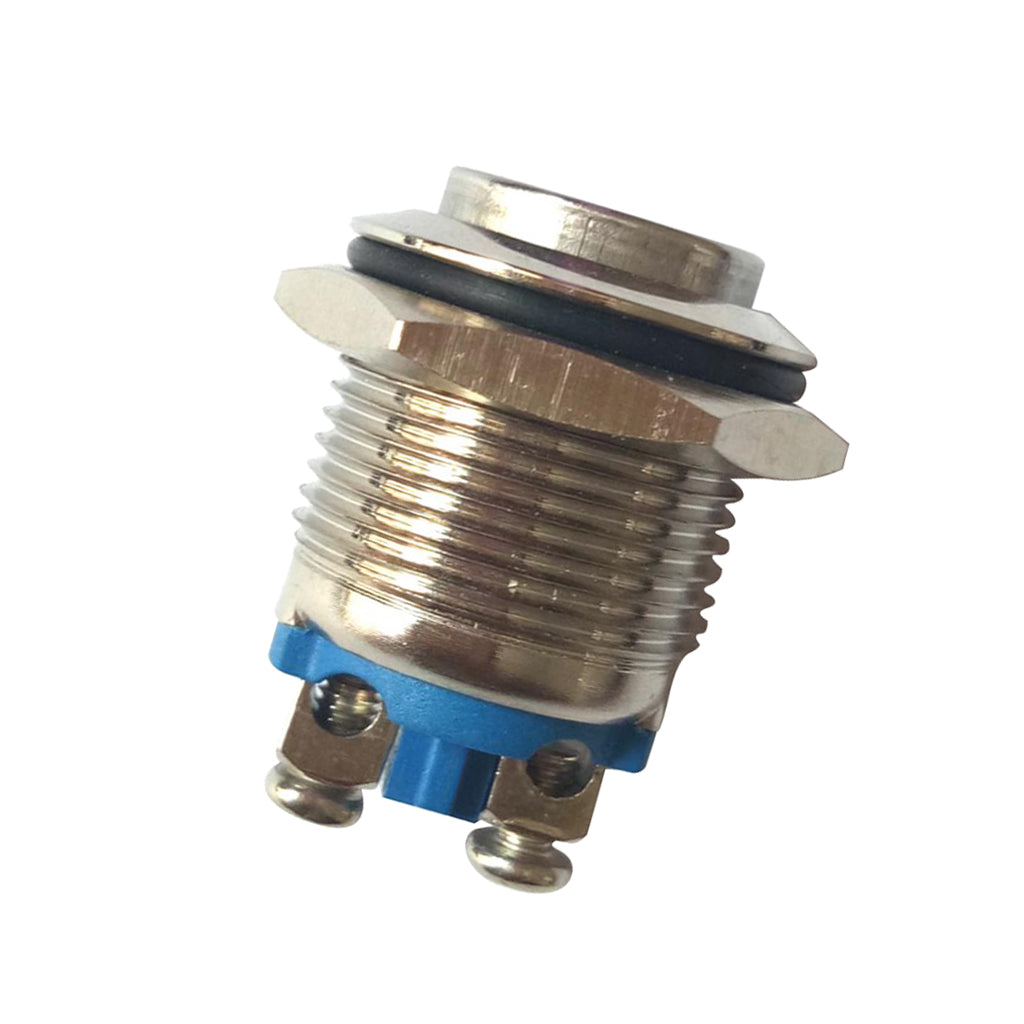

Maxbell 16mm High Round Metal 1 ON Push Button Momentary Switch Latching Waterproof Screw Terminals Copper Contact

Description:

Momentary type, 1 NO contact, 2 screw terminals.
This metal push button switch is suitable for 16mm diameter mounting hole.
IP67 Waterproof IK10 explosionproof protection: rustproof, can be used in wet or dusty environment.
Application: Automatic equipment, industrial equipment, robot, industrial equipment, motorcycle horn button etc.
Easy to Install: Screw clamp type terminals, don't need to solder.

Specification:

Contact points: Copper
Install diameter: 16mm
Head Type: High Head
Momentary Type: Push and Hold - ON, Release – OFF
Total Length: 21mm/0.87inch
Terminal Type: Screw
Protection Degree: IP67
Explosion-Proof level: IK10
Current Rating: 3A
Operating Pressure: 4Na
Working Humidity: 45-85
Shock resistance: > 10g
Seismic resistance: 50hz
Amplitude: 1.2 mm
Material: brass
Operation Temperature: -15℃ - 80℃

Package Includes:

1 Piece Metal Momentary Push Button Switch NO Normally Open
