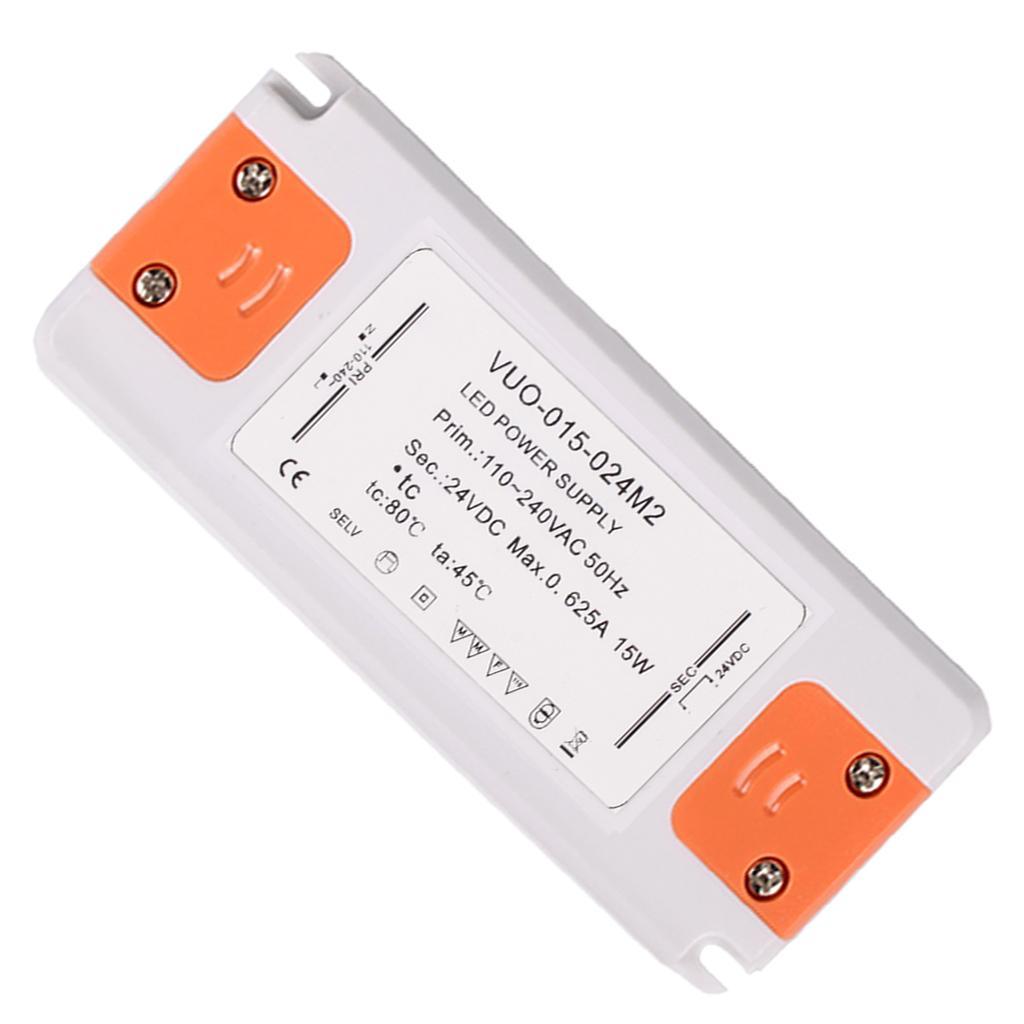

Max 15W 630MA 24V LED Constant Voltage LED Driver Supply for Mirror Headlight
Rs. 2,003.00Rs. 4,006.00
Description:
15W DC 24V Constant-Voltage ultra-thin LED power supply driver.
Short circuit protection, Overloading protection.
Suitable for Constant-Voltage Lamps which space limited places, such as lamp bars, modules, lamp strings, mirror headlights.
Output Power: 15W; Output Voltage(Loading): DC 24V.
Size: 127.5x50x10.8mm/5x1.97x0.4inch.
Specification:
Input Rated Voltage: AC 100-240V
Working Frequency: 50～60Hz
Input Power(Loading): ≤ 18W
Output Current(Loading): 630MA
Output Voltage(Loading): DC 24V
Output Voltage(Empty Load): ≤ 24V DC
Insulation Strength:
Input-Output: AC 1.5KV/5mA 1Min
Input-Housing: AC 1.5KV/5mA 1Min
Ripple: ≤ 600 MVpp(120Hz)
Efficiency: ≥ 85%
Power Factor: ≥ 95%
Working Temperature: -25℃~40℃
Package Includes:
1 Piece 15W 24V LED Power Supply
