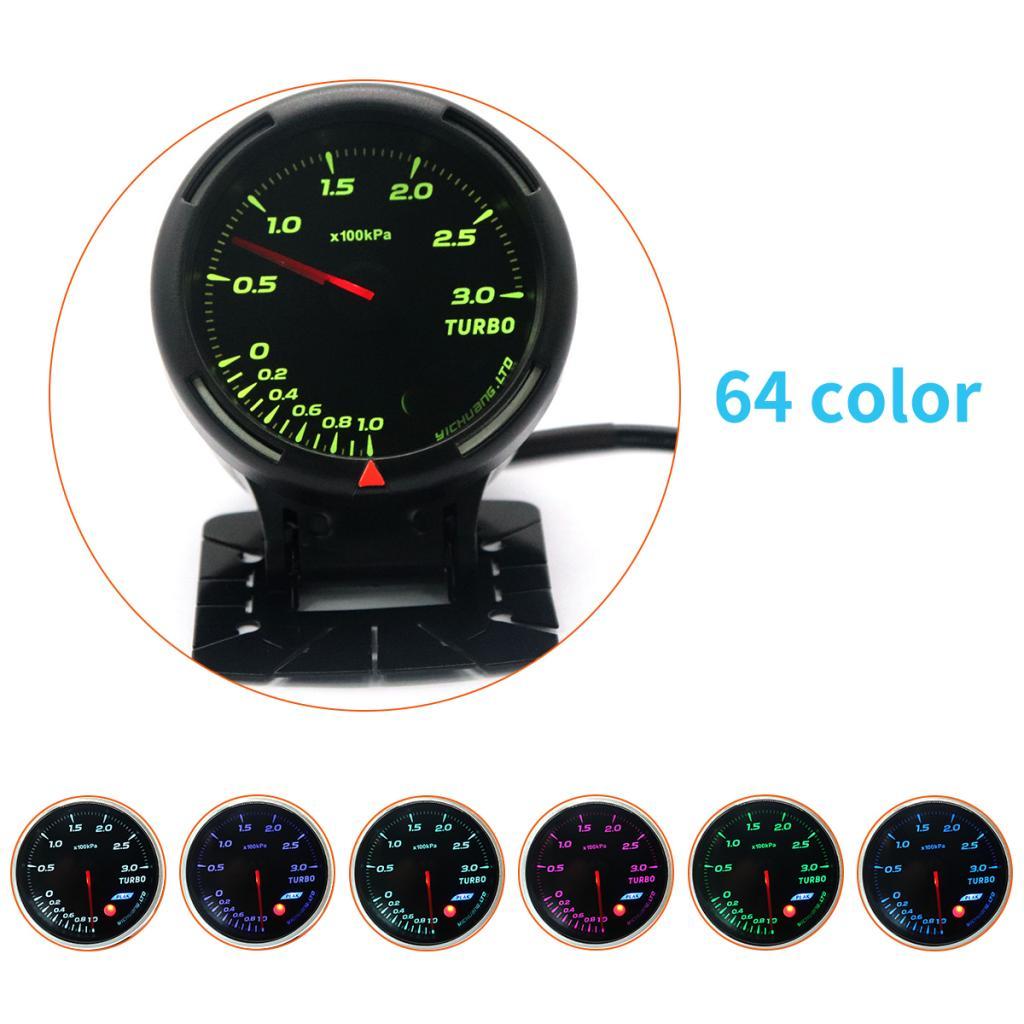

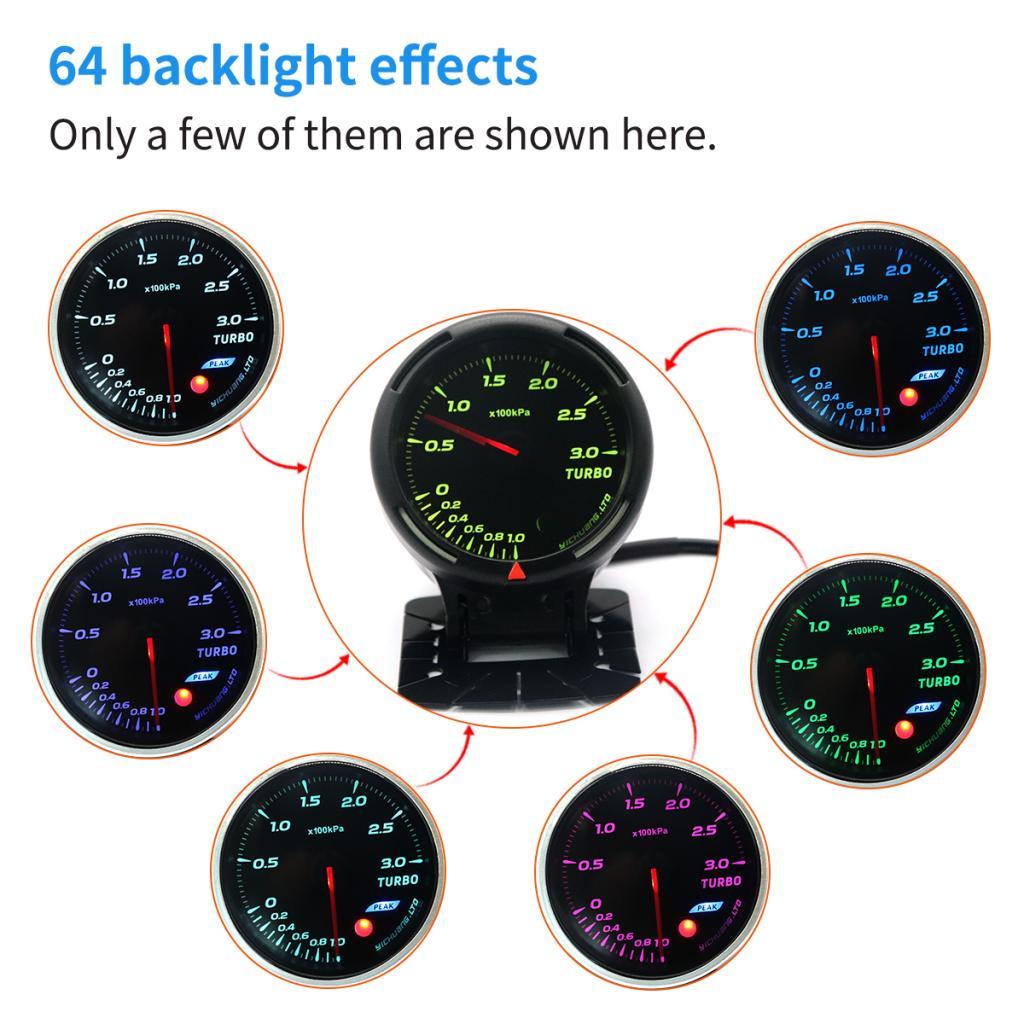

Max 12V Car 300KPa Turbocharger with Sensor 64 Color Backlight Pointer Display

Description:

1. open the box, remove the double-sided tape, attached to the bottom of the bracket.
2. Insert the protruding part of the mounting bracket into the meter cup and attach the mounting bracket to the meter cup using the bolts, nuts and washers included in the kit.
3. Attach 1~2 double-sided adhesive tape to the aluminum shell and connect it to the meter as a buffer.

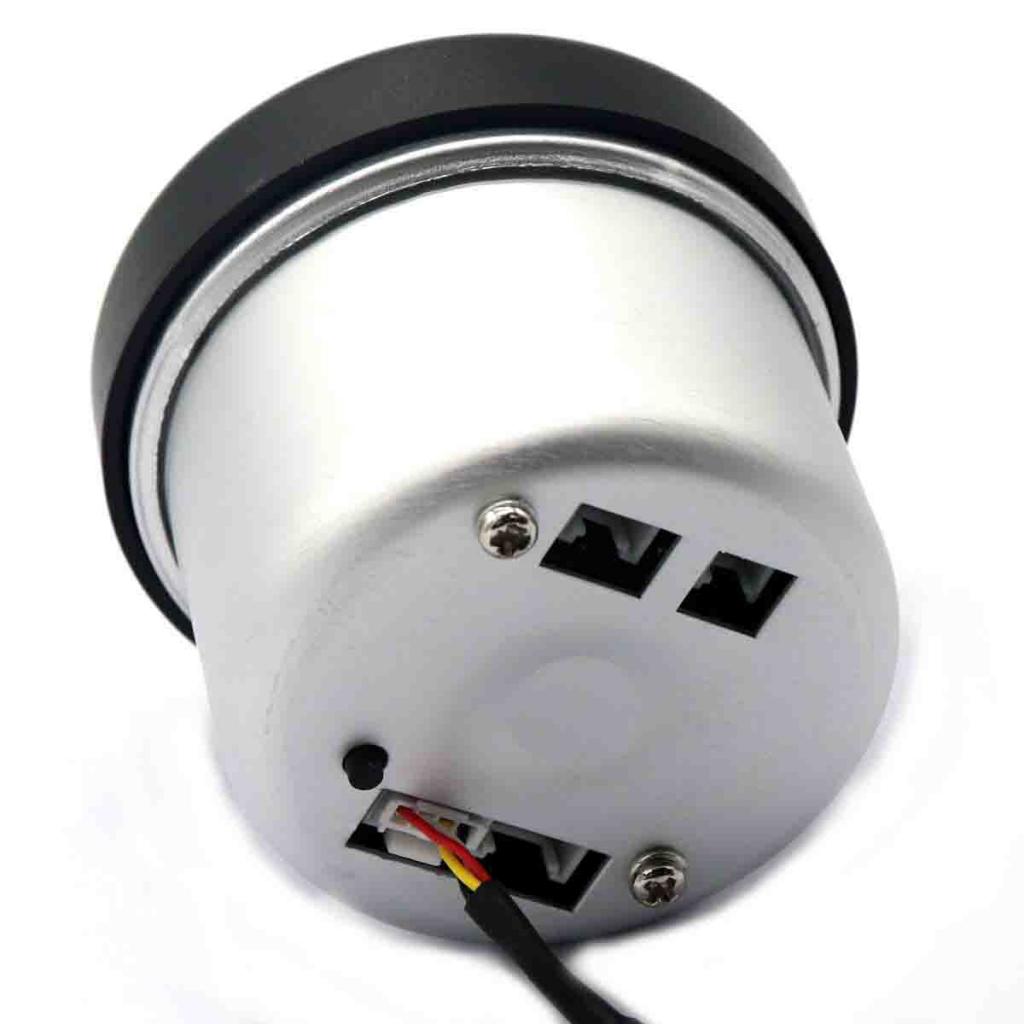

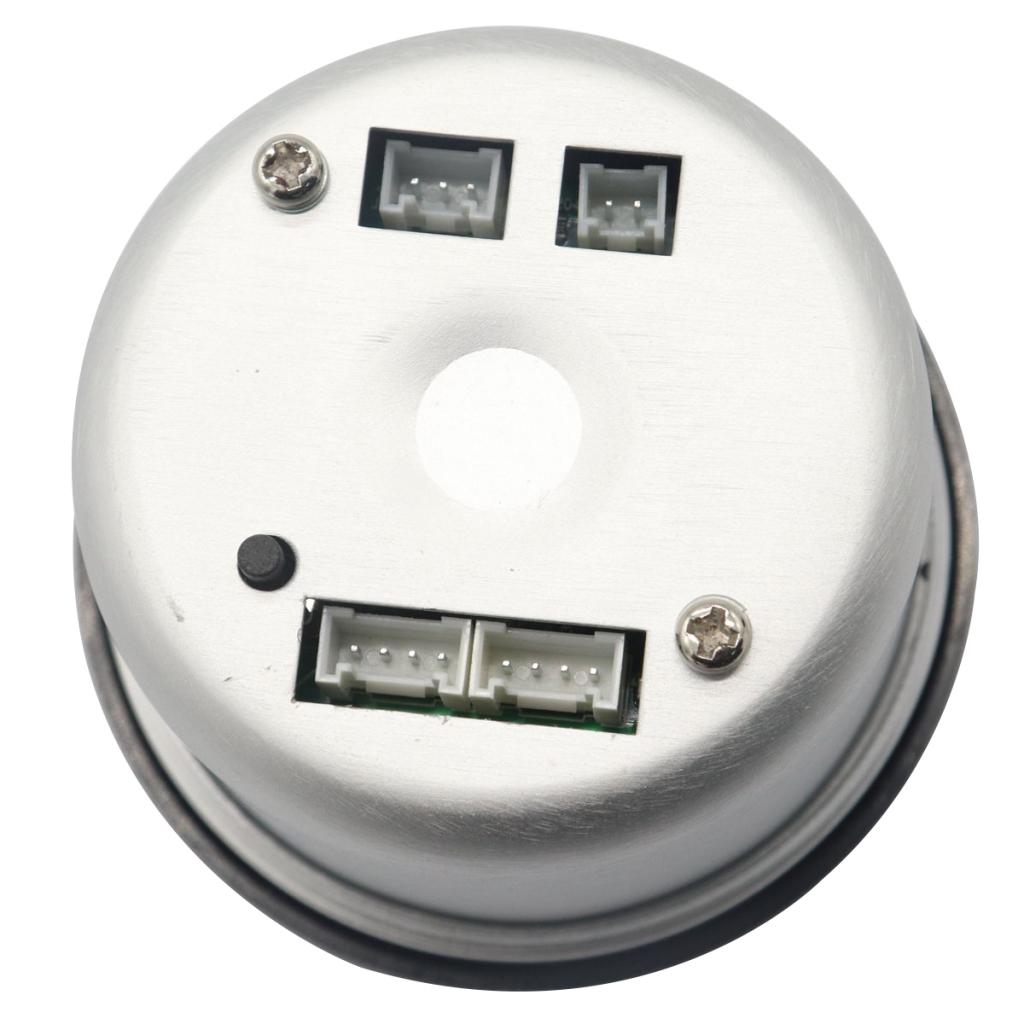

4. Route the meter wires through the meter cup holes and connect them to the meter.
5. Place the meter in the meter cup and make sure the wires are not caught in the middle.
6. Attach double-sided tape to the back of the mounting bracket and bend the mounting bracket to fit the position you want to install.

Specification:

Shell material: Plastic
Meter front diameter: 70mm
Meter back diameter: 65mm
Meter thickness 70mm
Working voltage: 10V-16V (12V vehicles only)
Measuring range: 0-300KPa
Red line: 200A (when the ignition switch is closed) 0.2 mA (when the ignition switch is turned off)
White line: 0.5mA
Temperature range: storage temperature operating temperature
Instrument -30(-22)~+80(176) -30(-22)~+60(140)

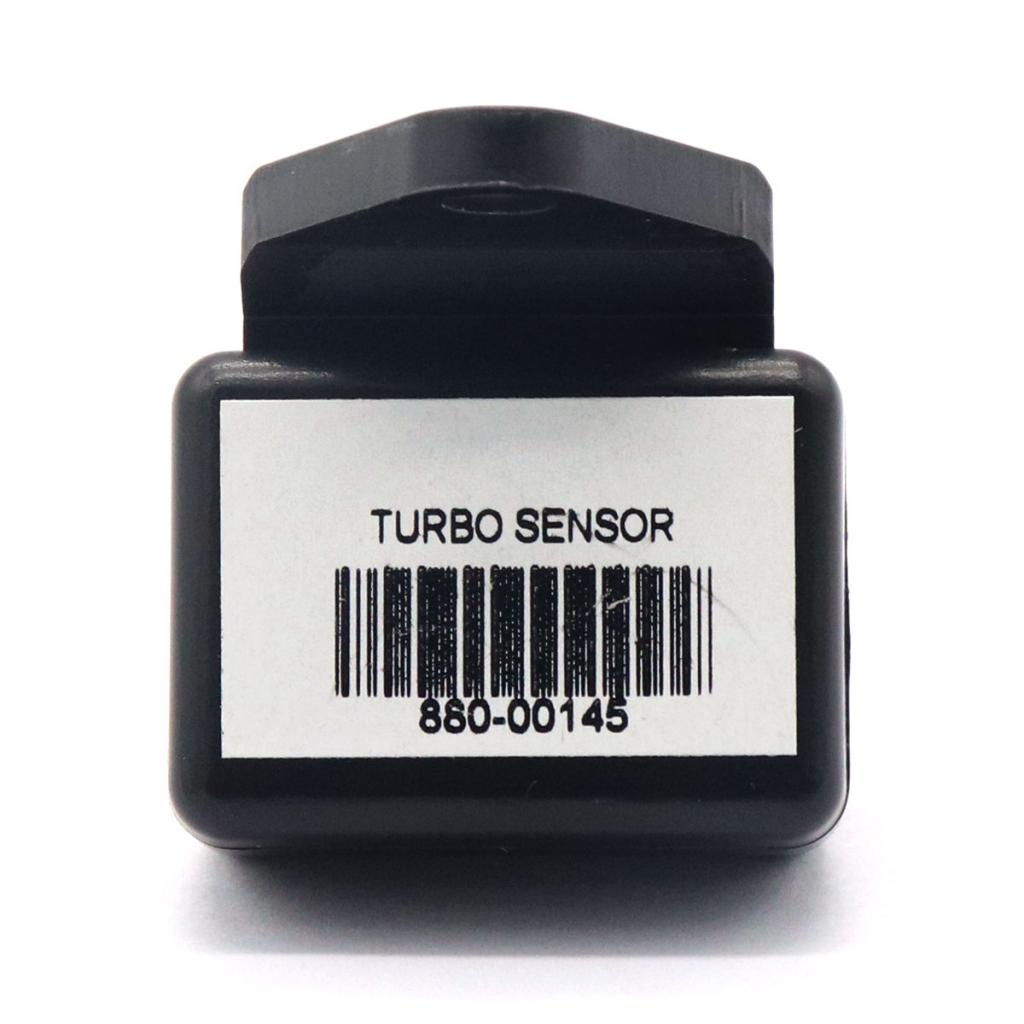

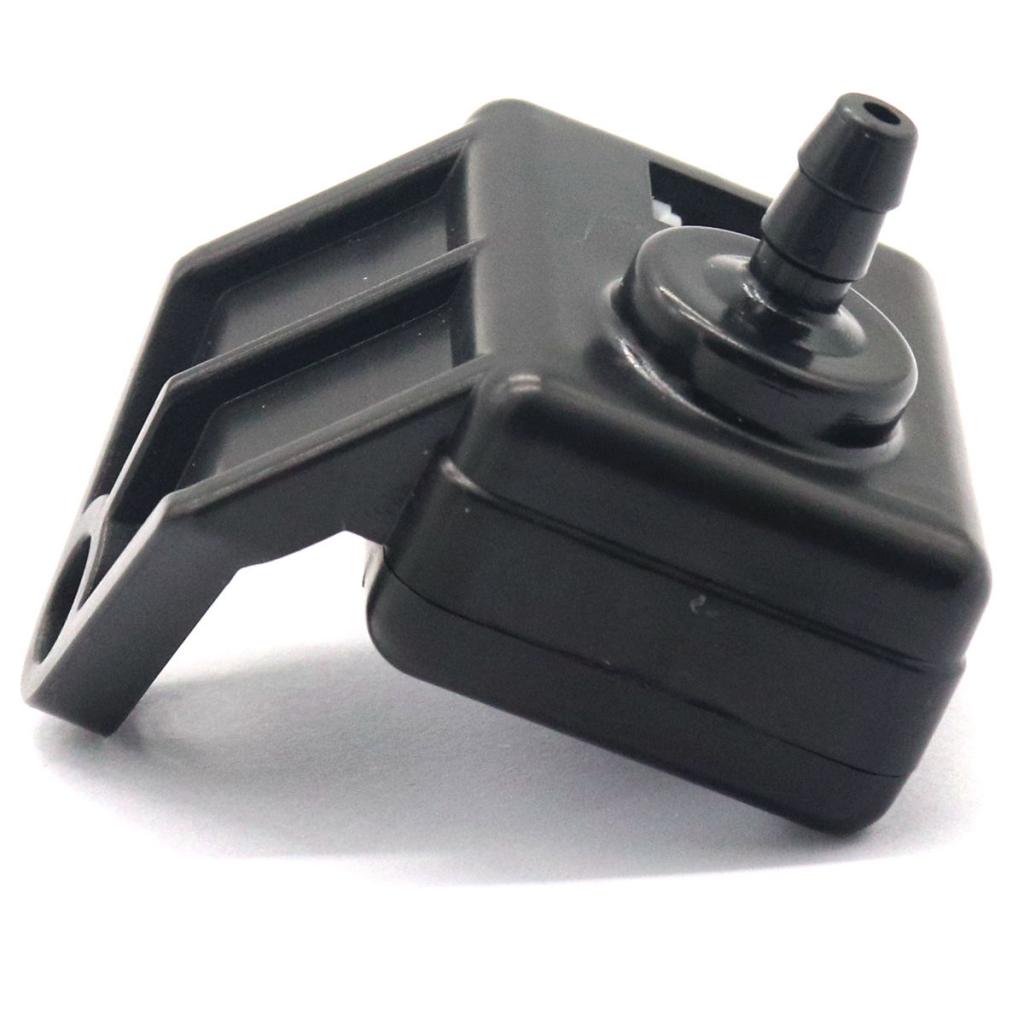

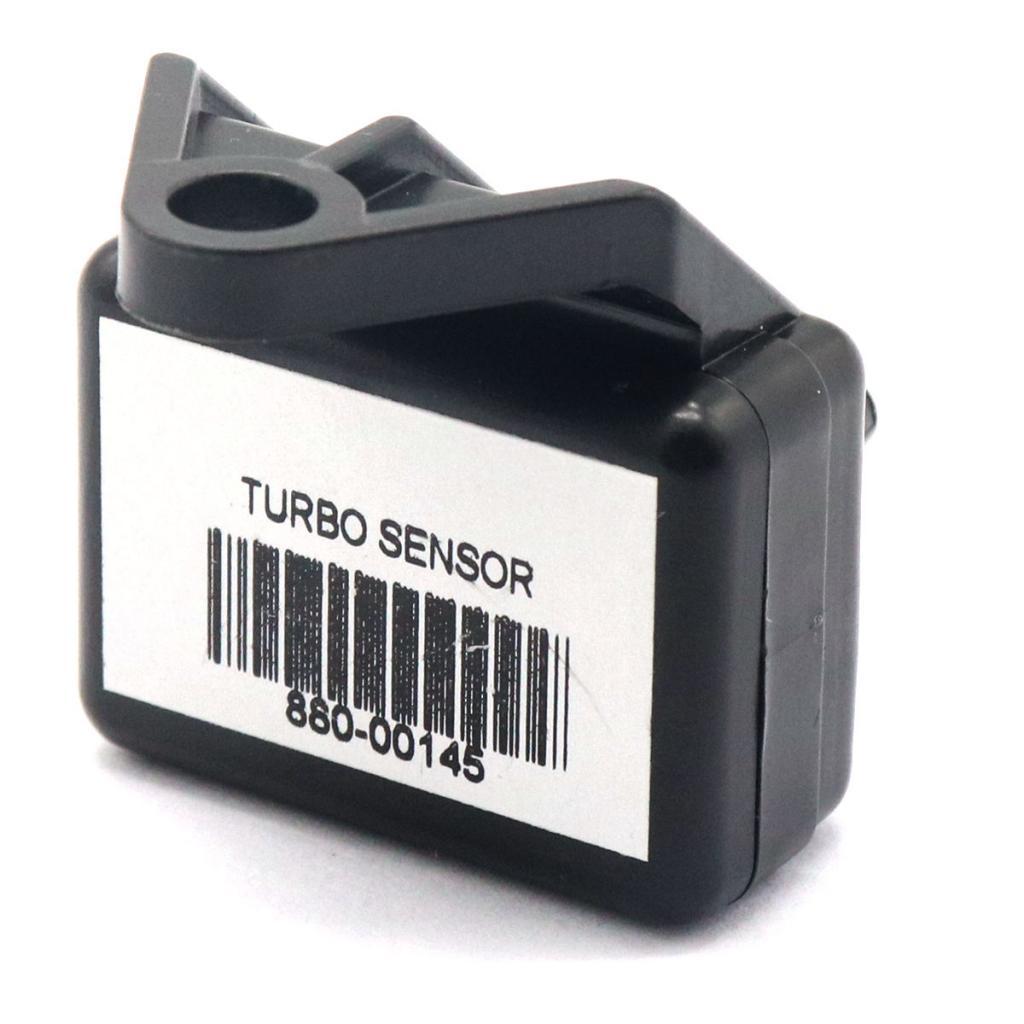

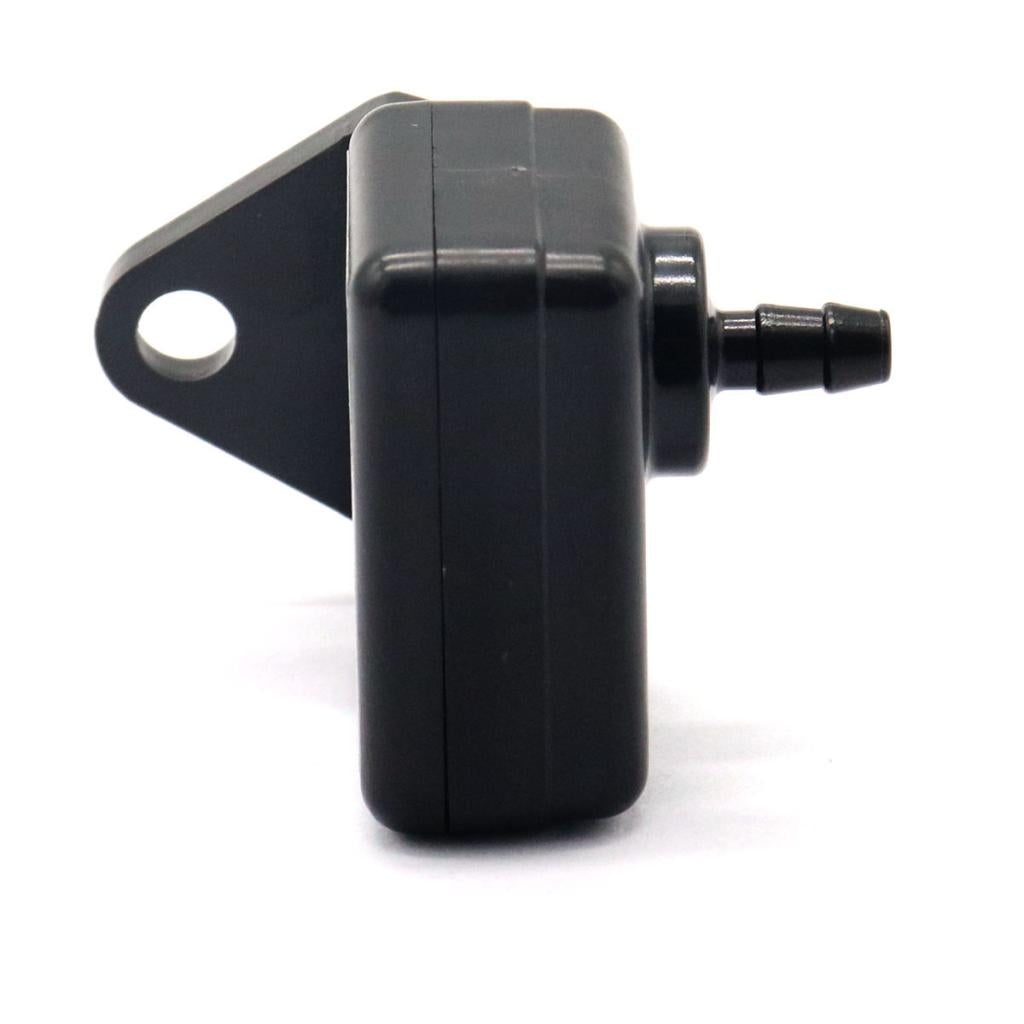

Turbocharger sensor -30(-22)~+100(212) -30(-22)~+80(176)

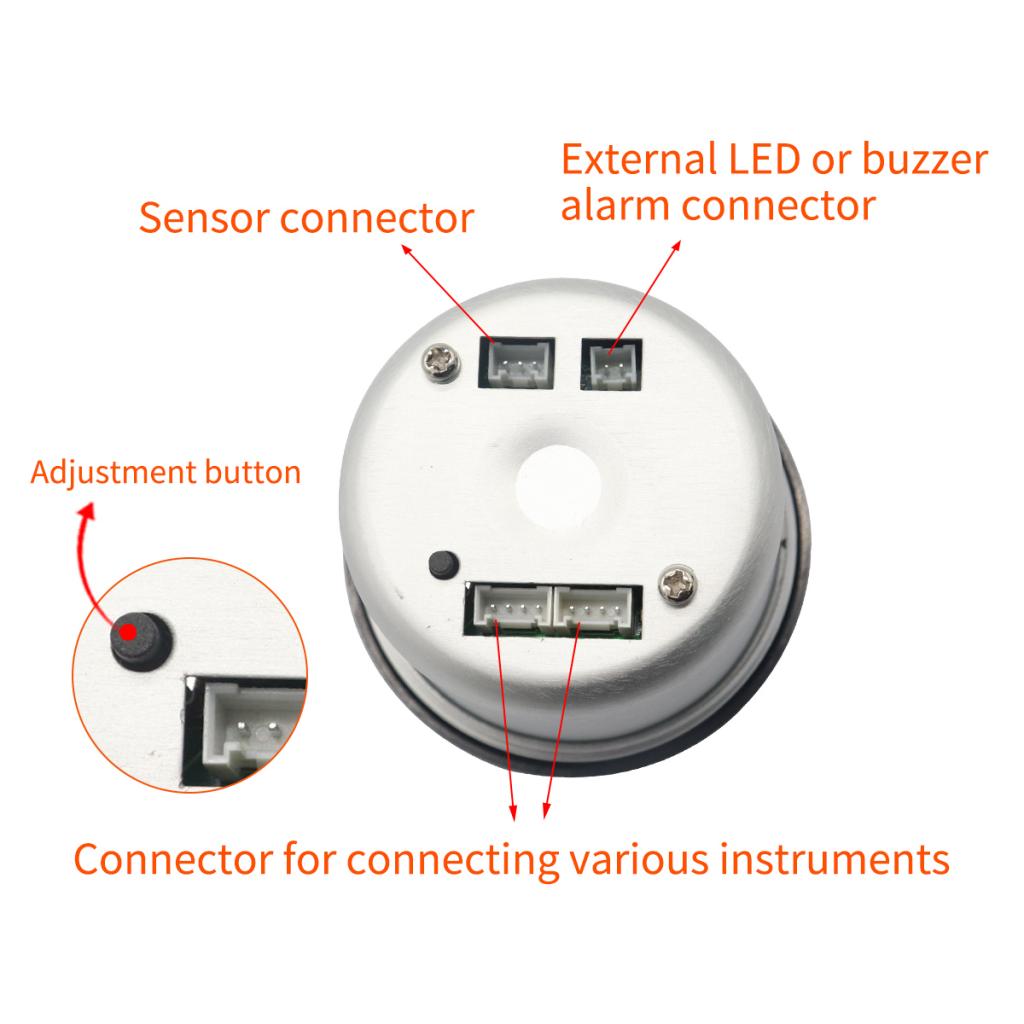

Wiring harness connection description: Red line: Connect the positive pole of the power supply (+12V)
Orange line: ING (when the ignition switch is on, connect 12V)
White line: ILM line, backlight (+12V)

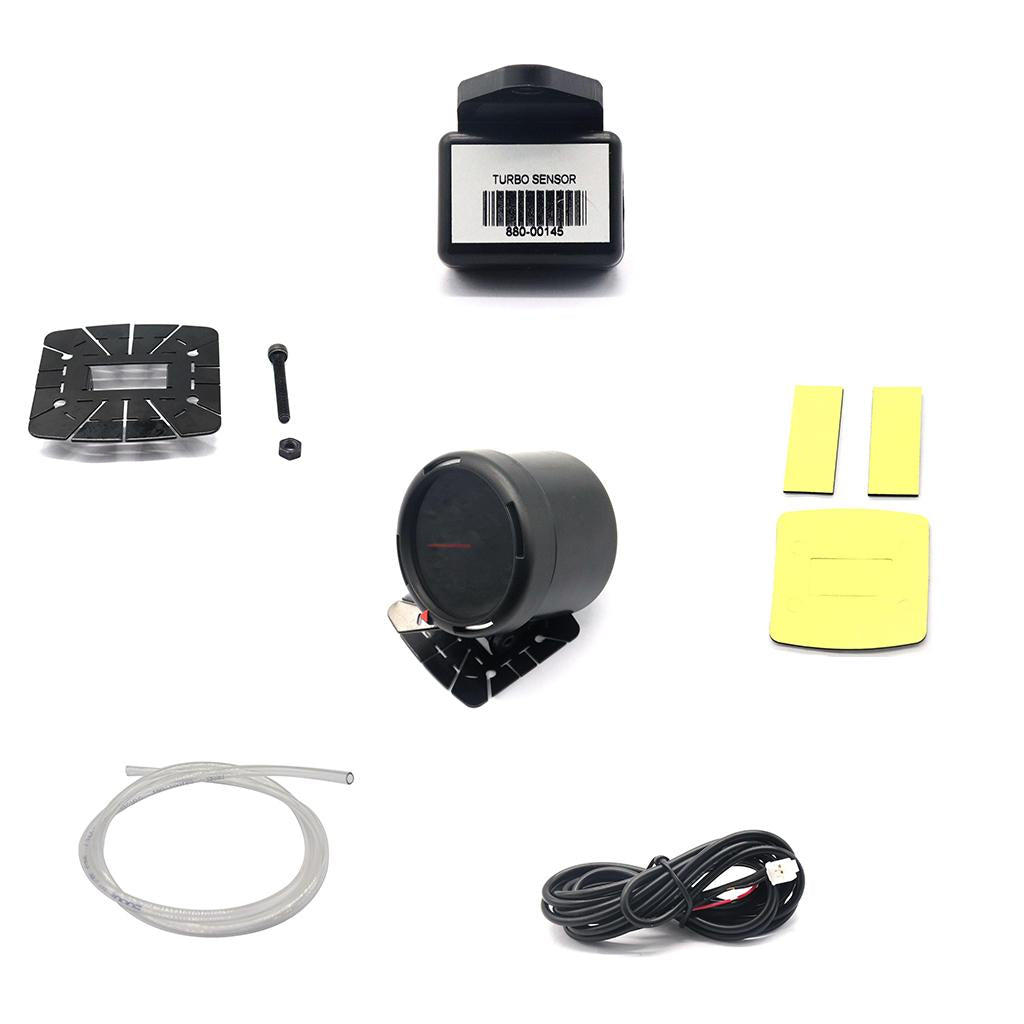

Package Includes:

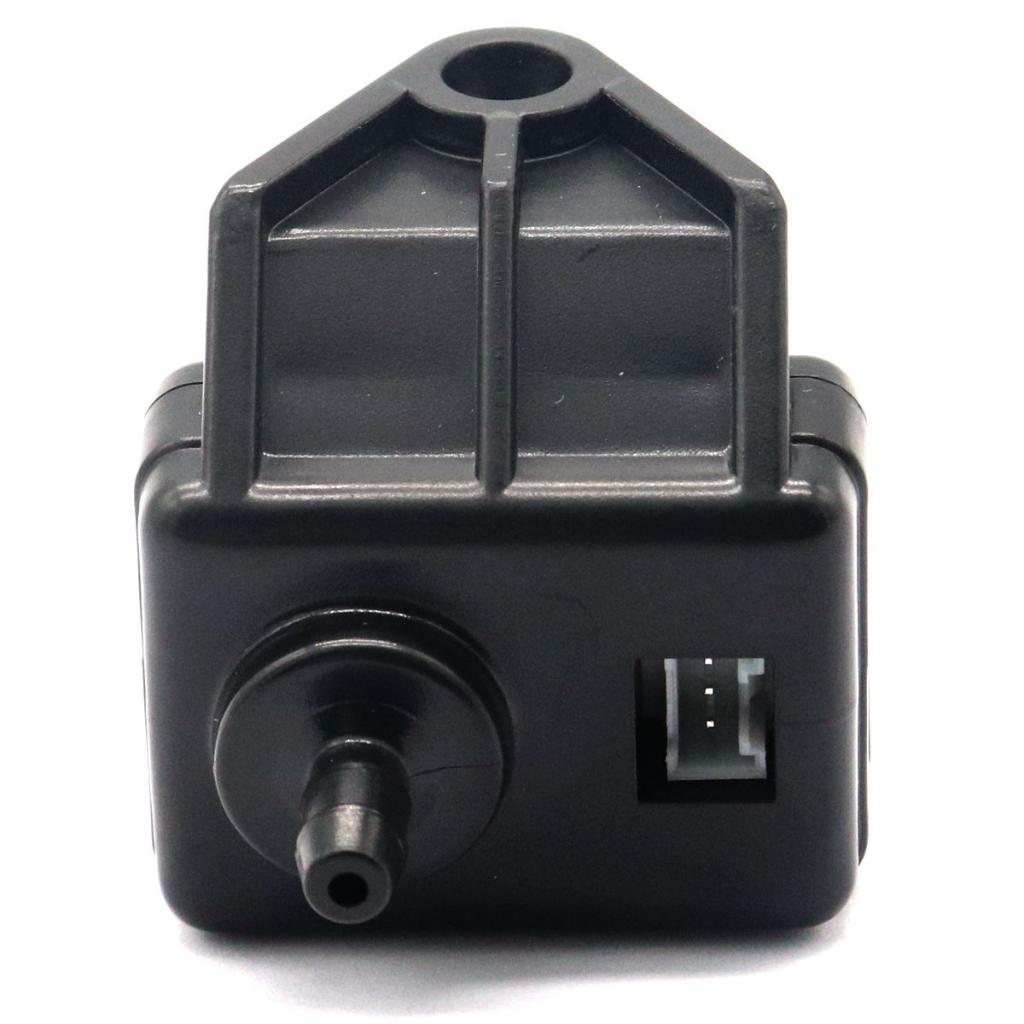

1 Piece Turbocharger

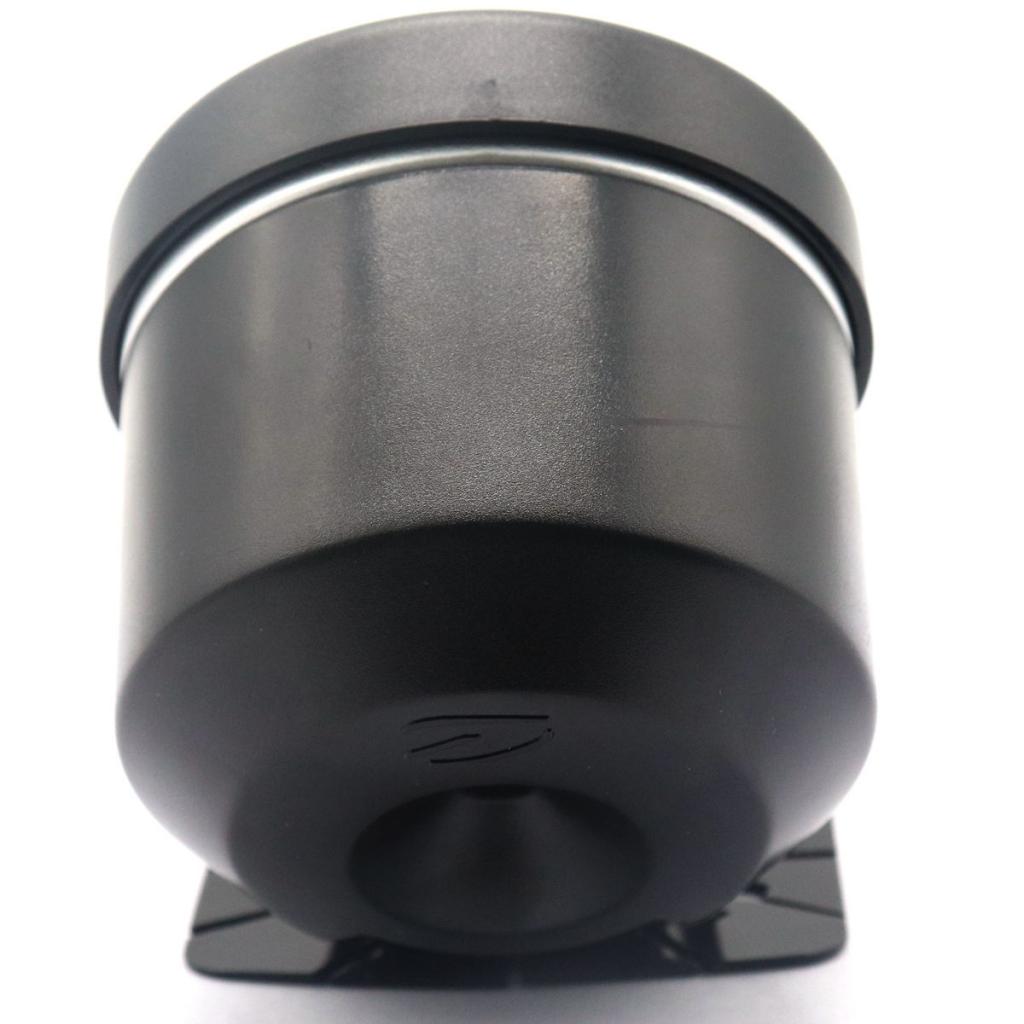

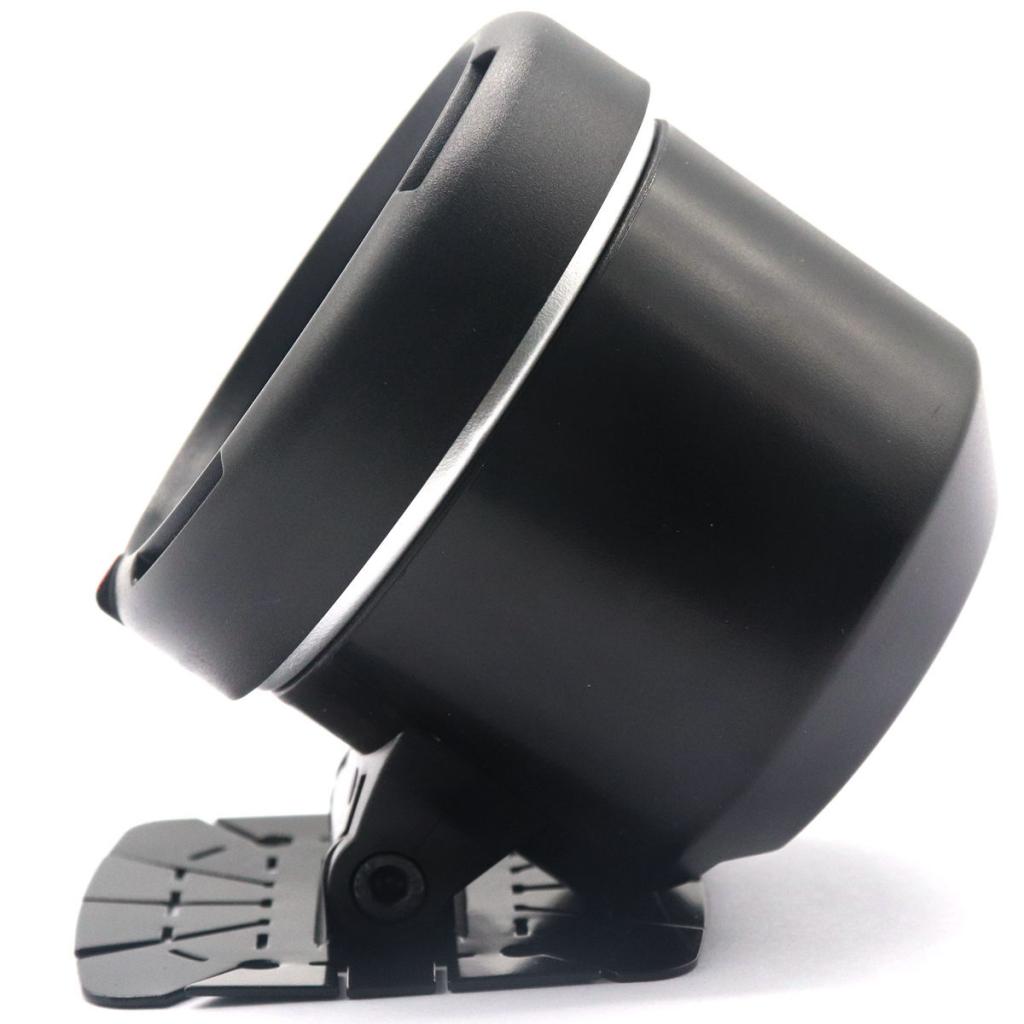

1 Piece Gauge Housing
1 Piece Front cover

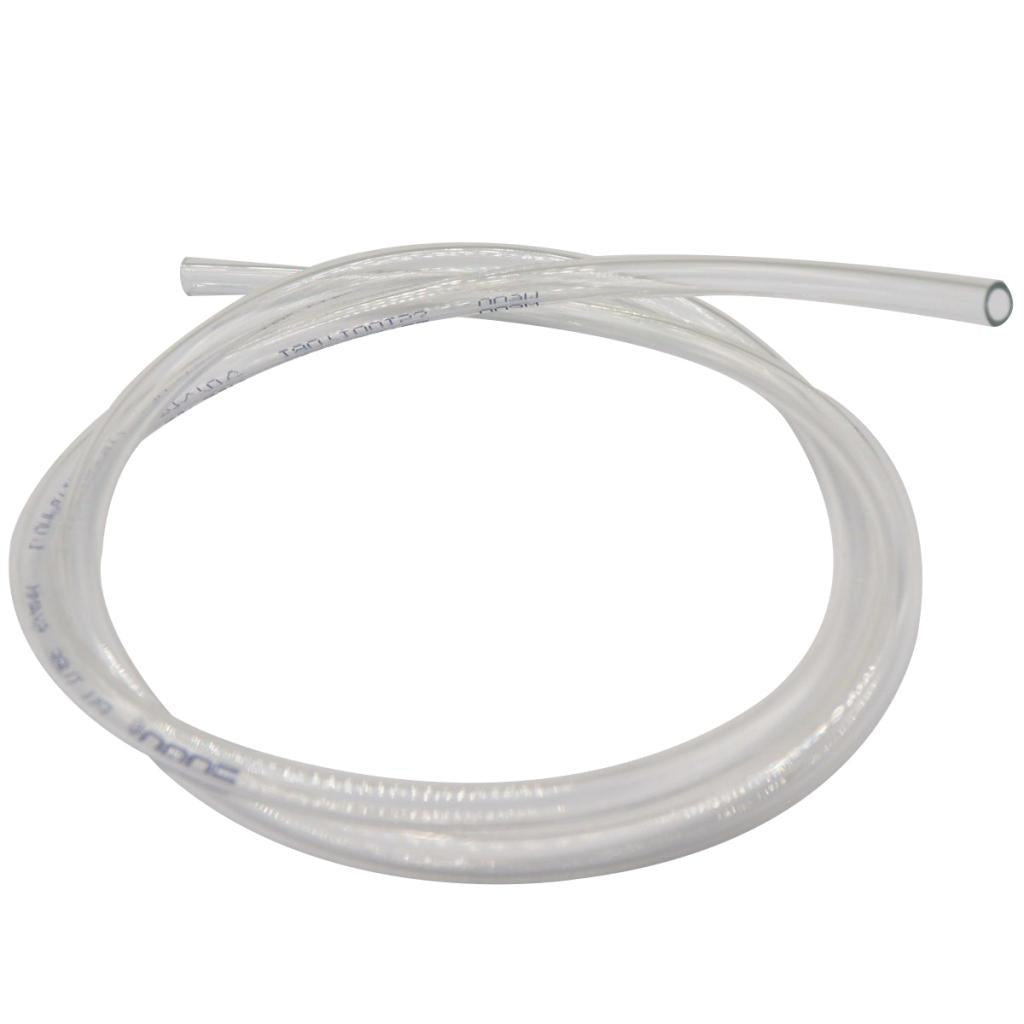

1 piece leather tube

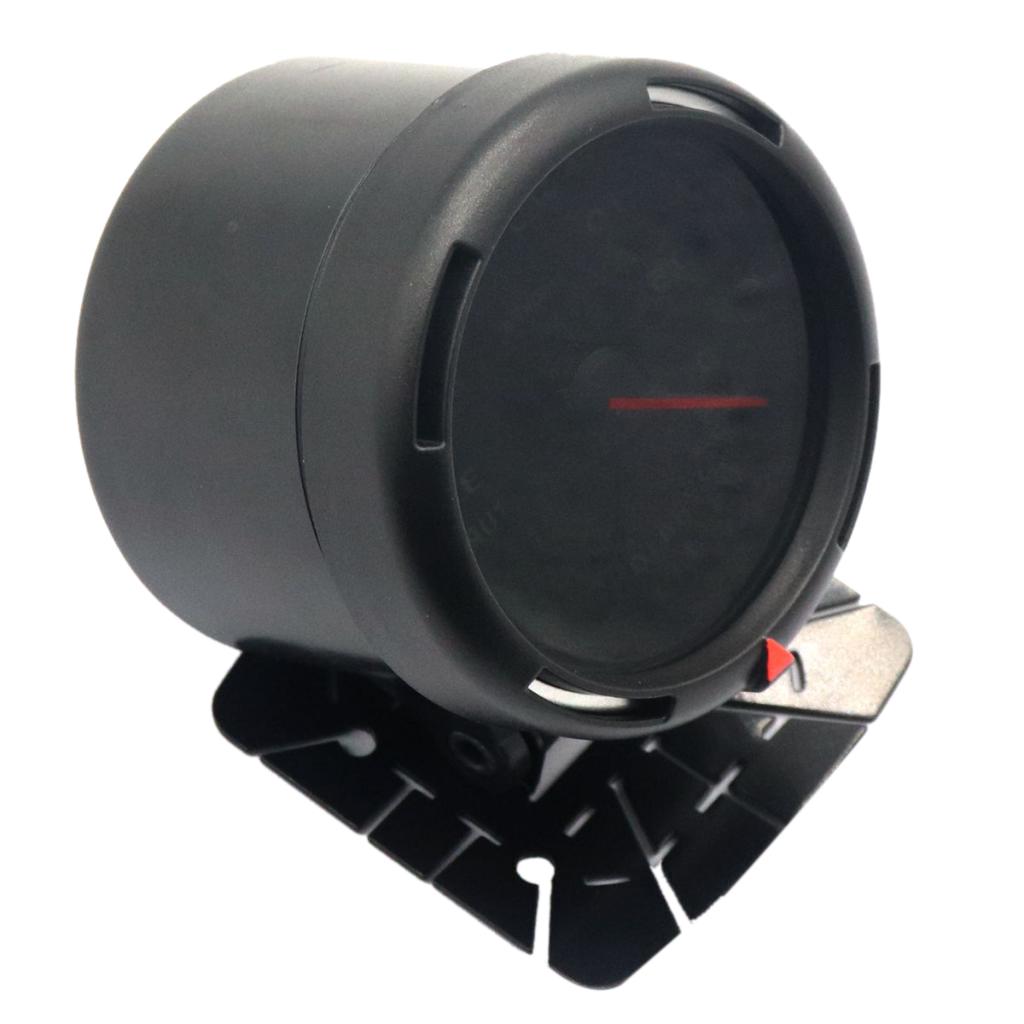

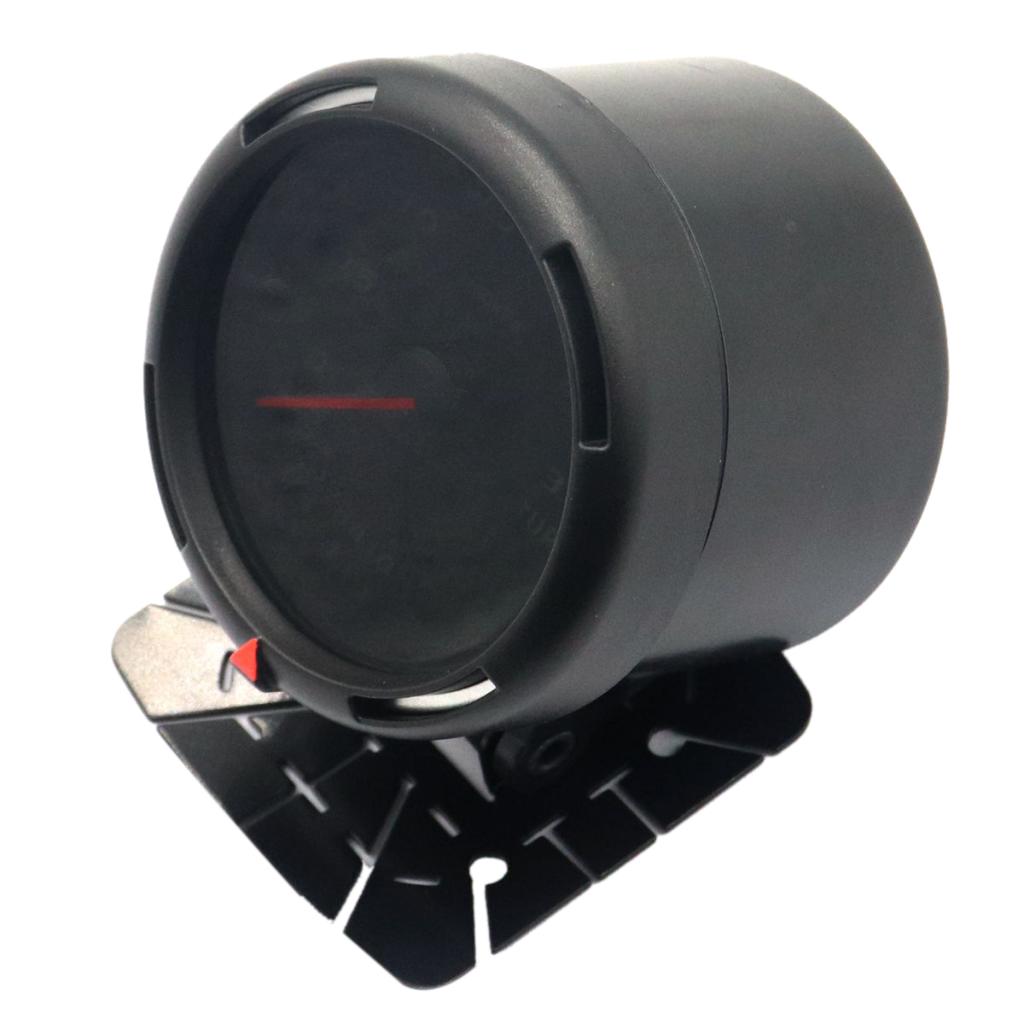

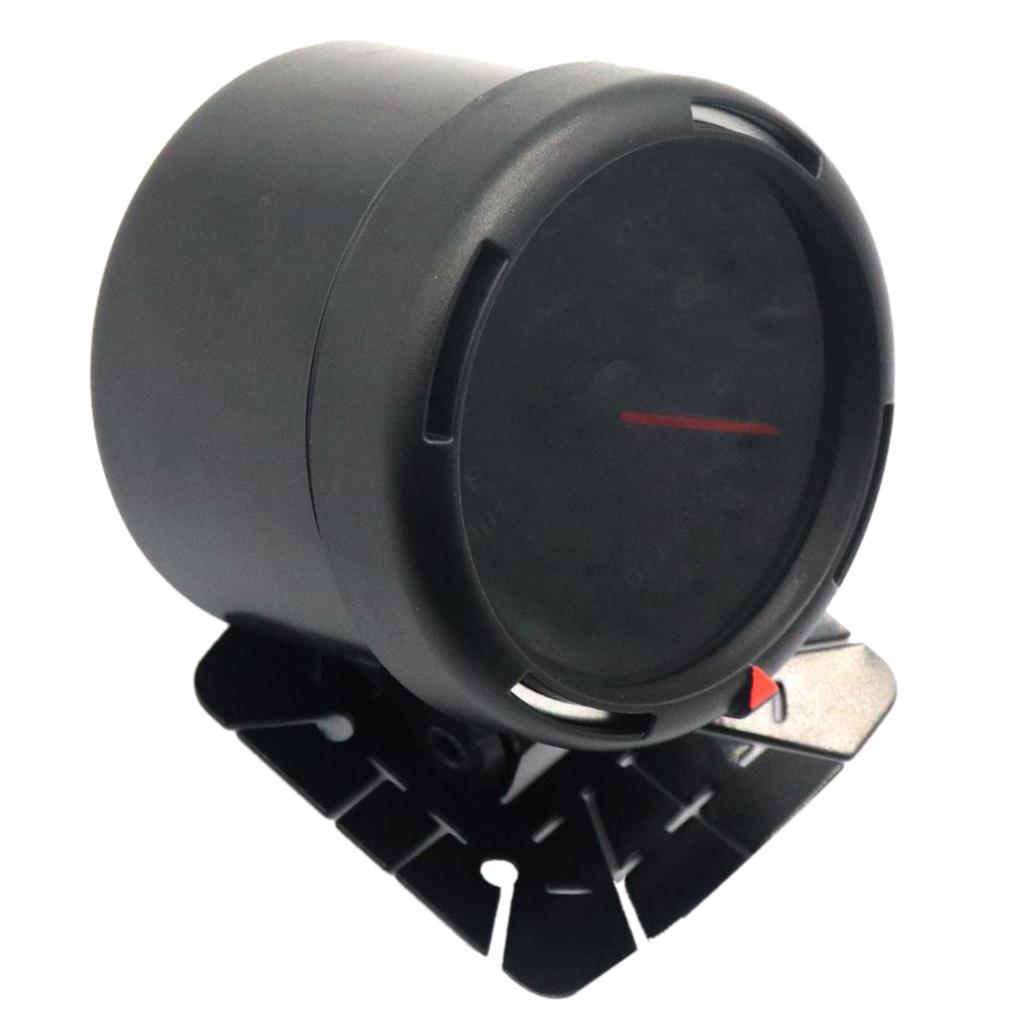

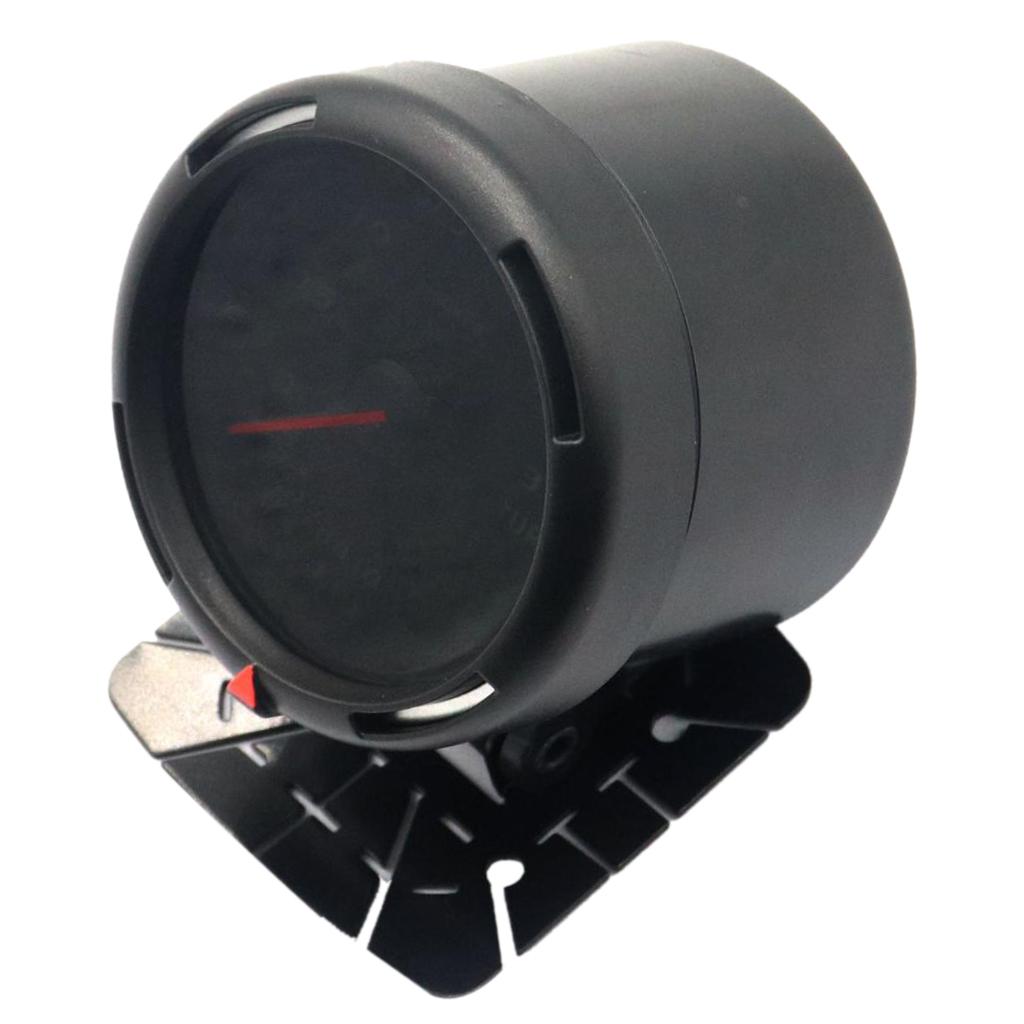

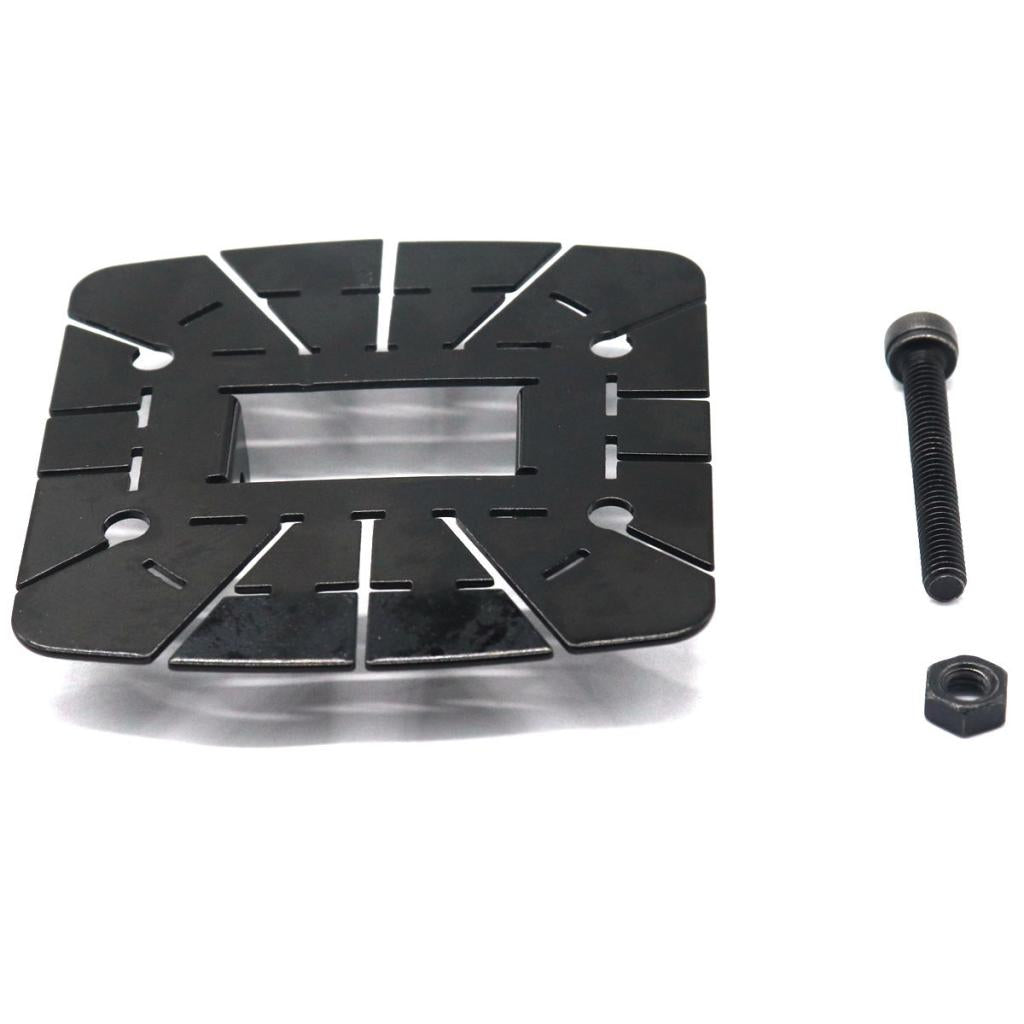

1 Piece Mounting Bracket
1 Piece Bolt and nut

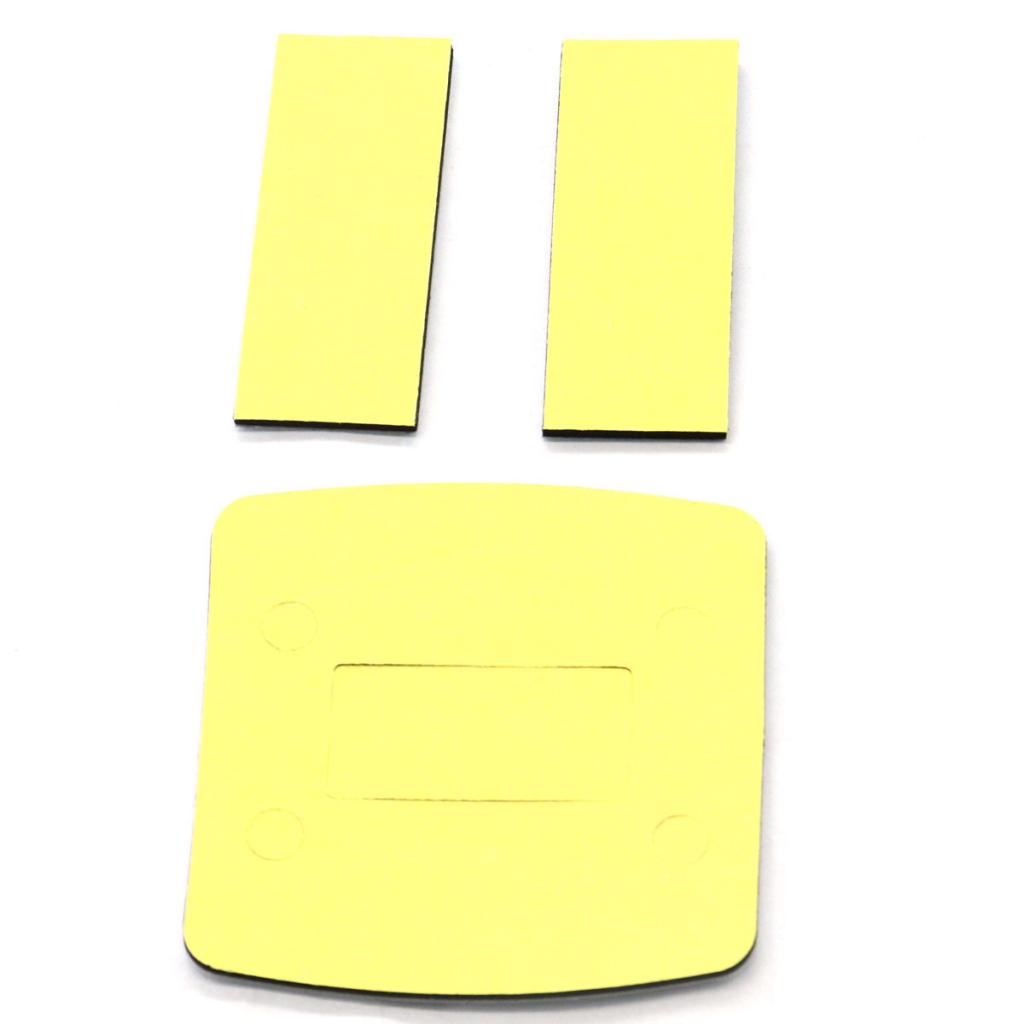

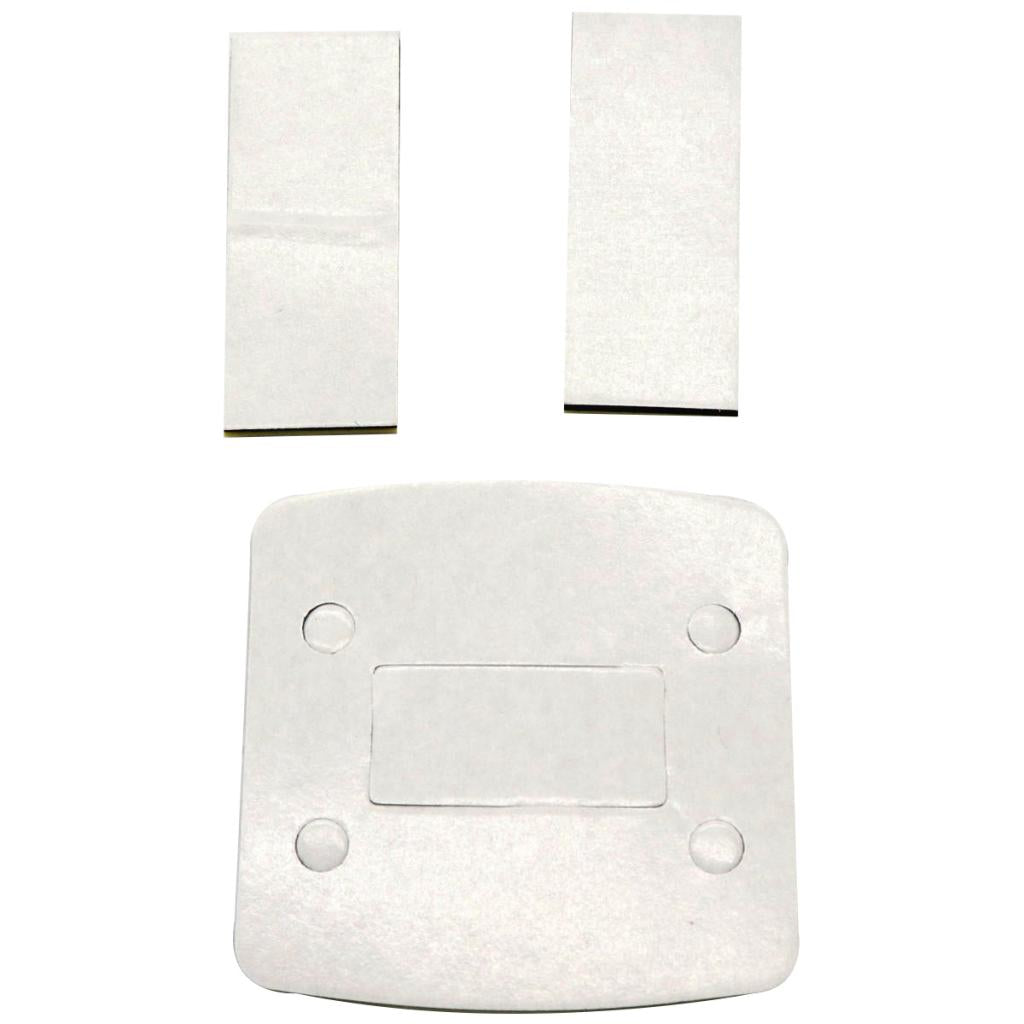

1 Piece Double-sided tape

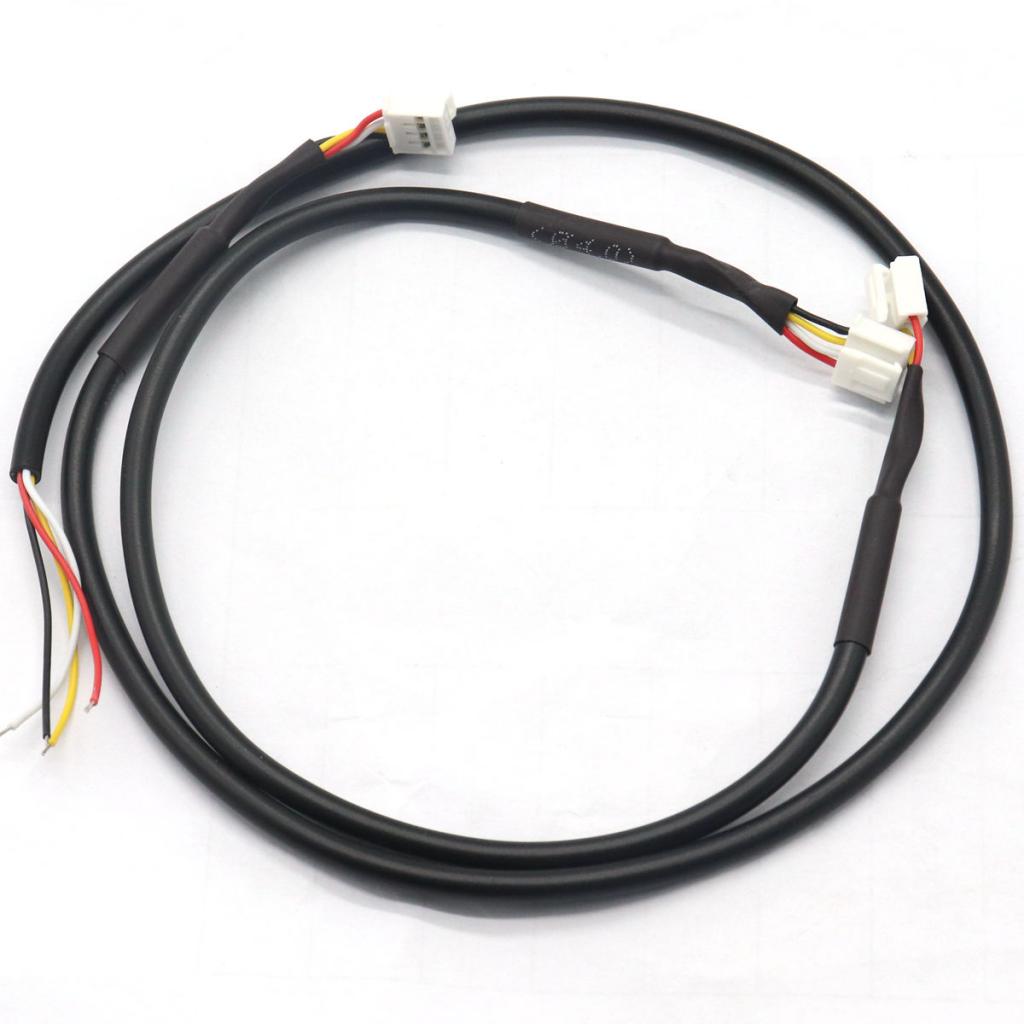

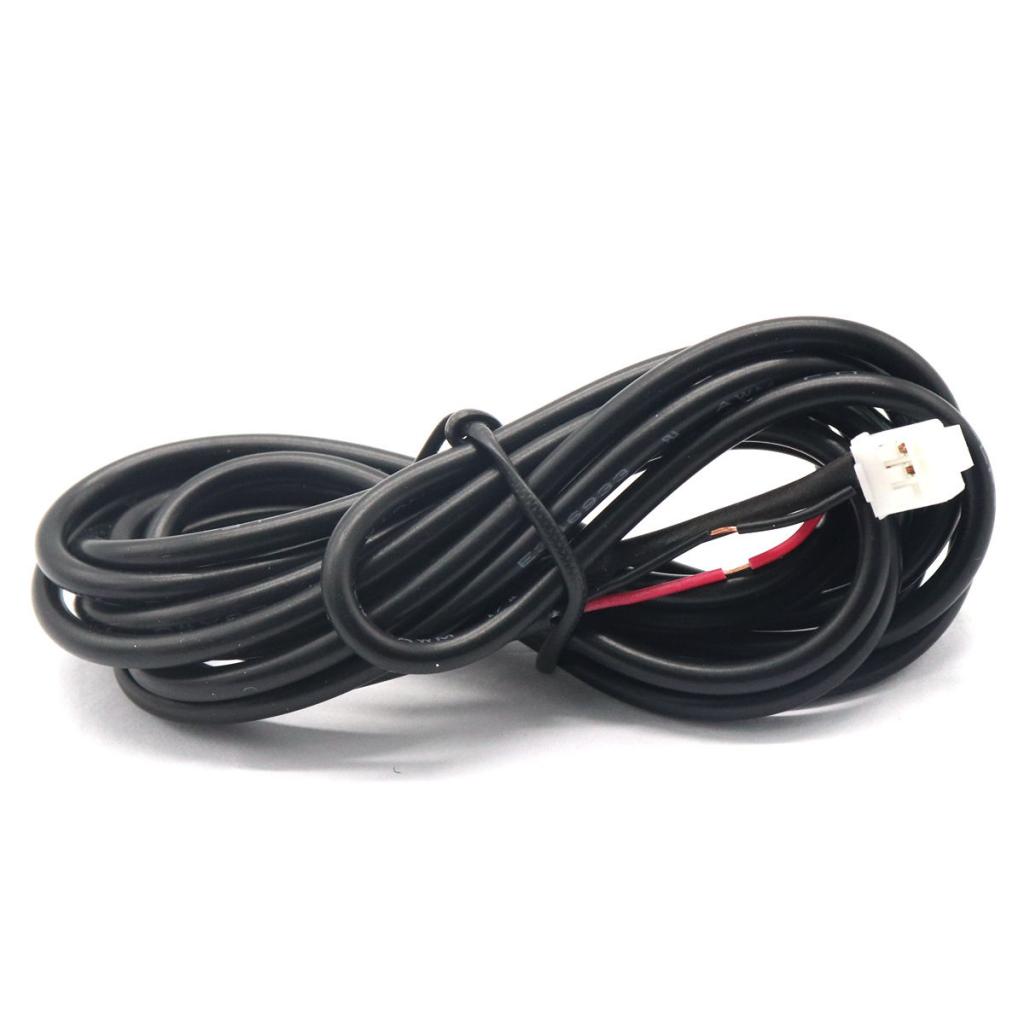

3 Pieces Power cord
