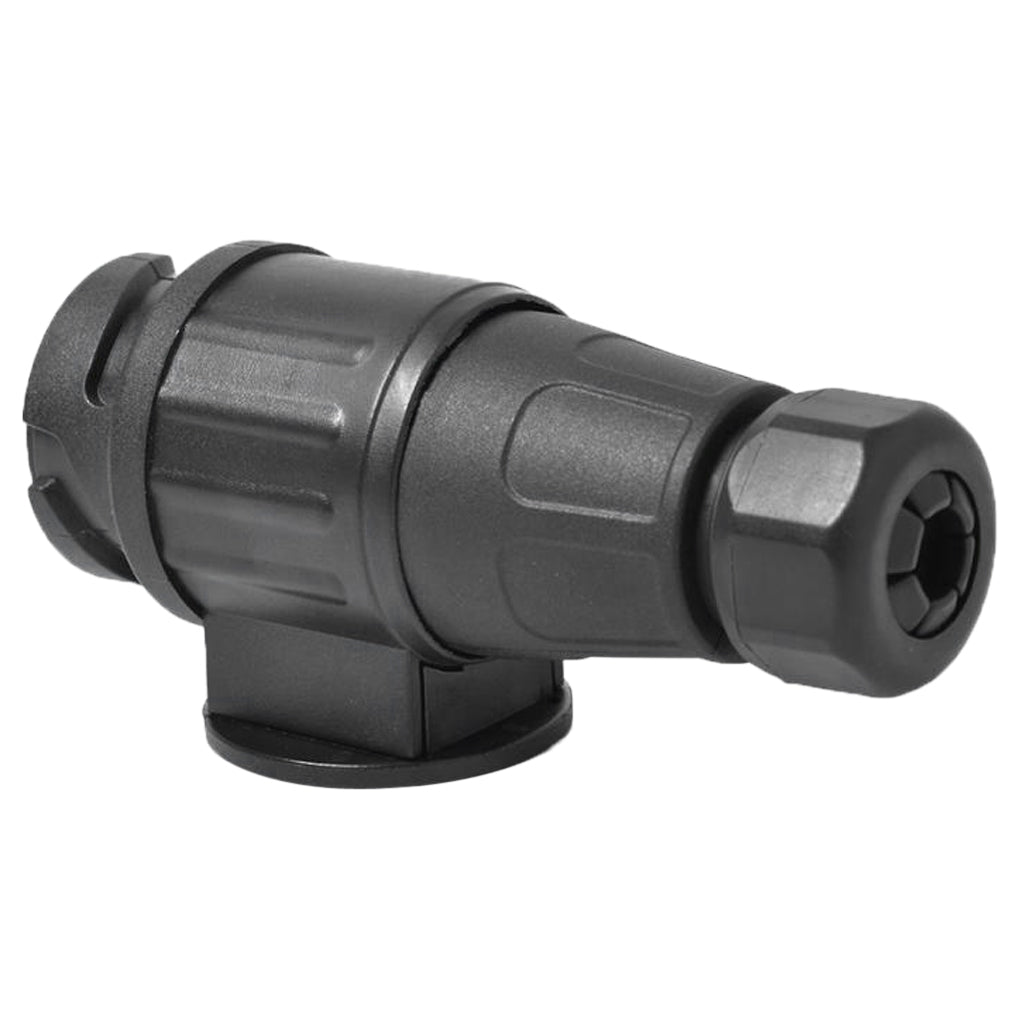

Description:
Easy to install，Designed to provide excellent light facility
Plastic housing, metal contacts inside, anti-corrosion，waterpoof
13pin blade trailer plugs, non-corroding, shock-resistant interior design
Functions for left/right turn, taillight, reverse, electric brakes and auxiliary
Splices into vehicle towing socket to provide a connection for a trailer adapter
Specification:
Type:13 Pin Plug
Material:Plastic
Item Color:Black
Voltage:12V
13 Pin Lighting Connections – Cable Function
Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )
Size Chart:
Size: Approx.12x6x5cm/4.72x2.36x1.97inch
Package Includes:
1 x13pin Trailer Connector
Note:
Due to different computer screen, the color of the actual items may slightly different from the listing images.
Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
Thanks for your understanding.
