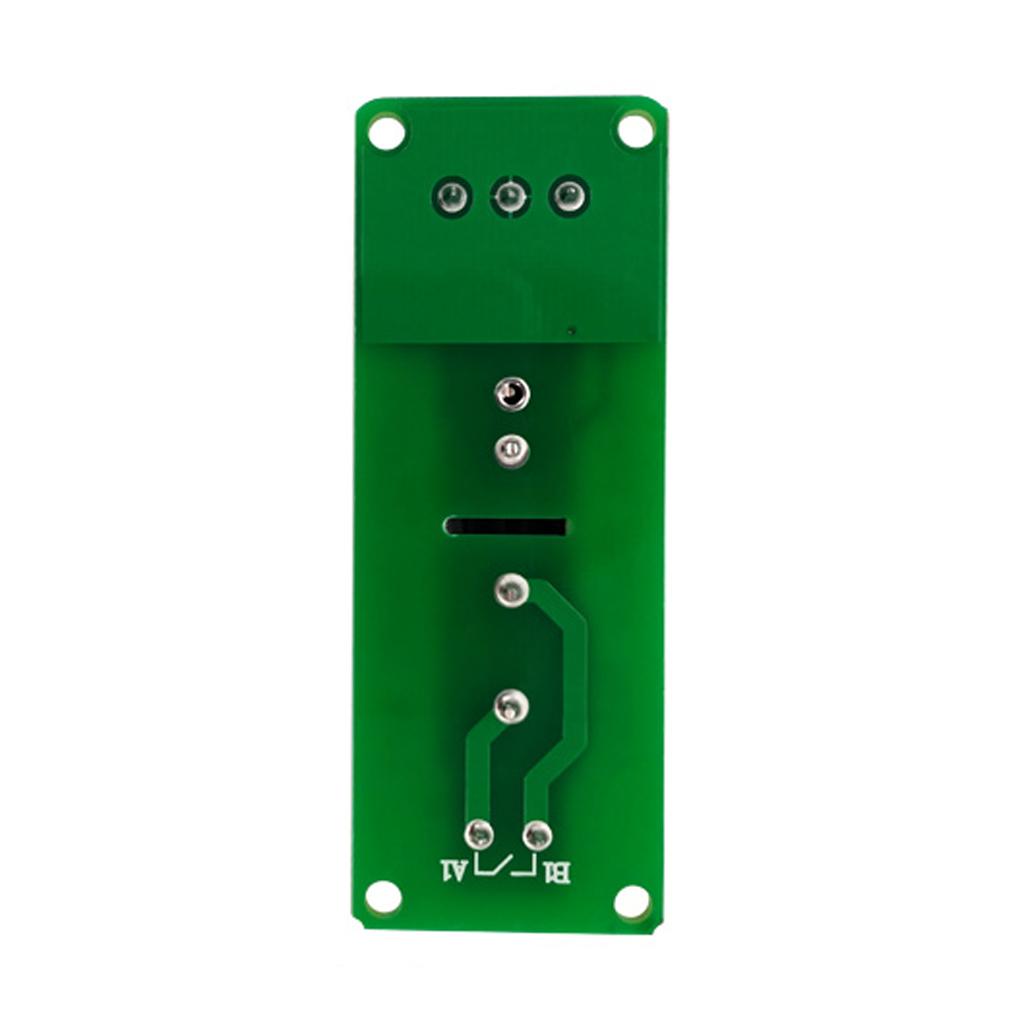

Maxbell 1 Channel 220V 5A Solid Relay Module Board Optocouple Low Level Trigger 12V
Rs. 739.00Rs. 1,478.00
Description:
Brand new and high quality
5V/12V/24V 1-Channel Relay interface board
Equipped with high-current relay DC current
Standard interface that can be installed by TS35 / 7.5 / NS35 / NS / 32 card rails
Widely used: PLC automation equipment control, industrial system control, Internet control, electronic hobbyist development test, all kinds of circuit modification, etc.
Specification:
Material: Plastic
Color: As picture show
Size: Apprxo. 72x27x25mm/2.83x1.06x0.98inch
Hole Size: Approx. 24.5x69.5mm/0.96x2.74inch
Supply voltage: DC 5V; 12V; 24V
Quiescent current: 0mA
Maximum operating current: 12.5mA
Trigger mode: low trigger; NPN trigger
Load voltage: 5-220VDC
Load current: 5A
Module life: ≤ 10 million times
Switch the maximum...
✓ Secure checkout
✓ Quality checks before dispatch
✓ Customer support for order assistance
Product details
Description:
Brand new and high quality
5V/12V/24V 1-Channel Relay interface board
Equipped with high-current relay DC current
Standard interface that can be installed by TS35 / 7.5 / NS35 / NS / 32 card rails
Widely
used: PLC automation equipment control, industrial system control,
Internet control, electronic hobbyist development test, all kinds of
circuit modification, etc.
Specification:
Material: Plastic
Color: As picture show
Size: Apprxo. 72x27x25mm/2.83x1.06x0.98inch
Hole Size: Approx. 24.5x69.5mm/0.96x2.74inch
Supply voltage: DC 5V; 12V; 24V
Quiescent current: 0mA
Maximum operating current: 12.5mA
Trigger mode: low trigger; NPN trigger
Load voltage: 5-220VDC
Load current: 5A
Module life: ≤ 10 million times
Switch the maximum frequency: 5KHZ
Installation: TS35 / 7.5 / NS35 / NS / 32 card rails
Package Includes:
1 piece Relay Module Board
