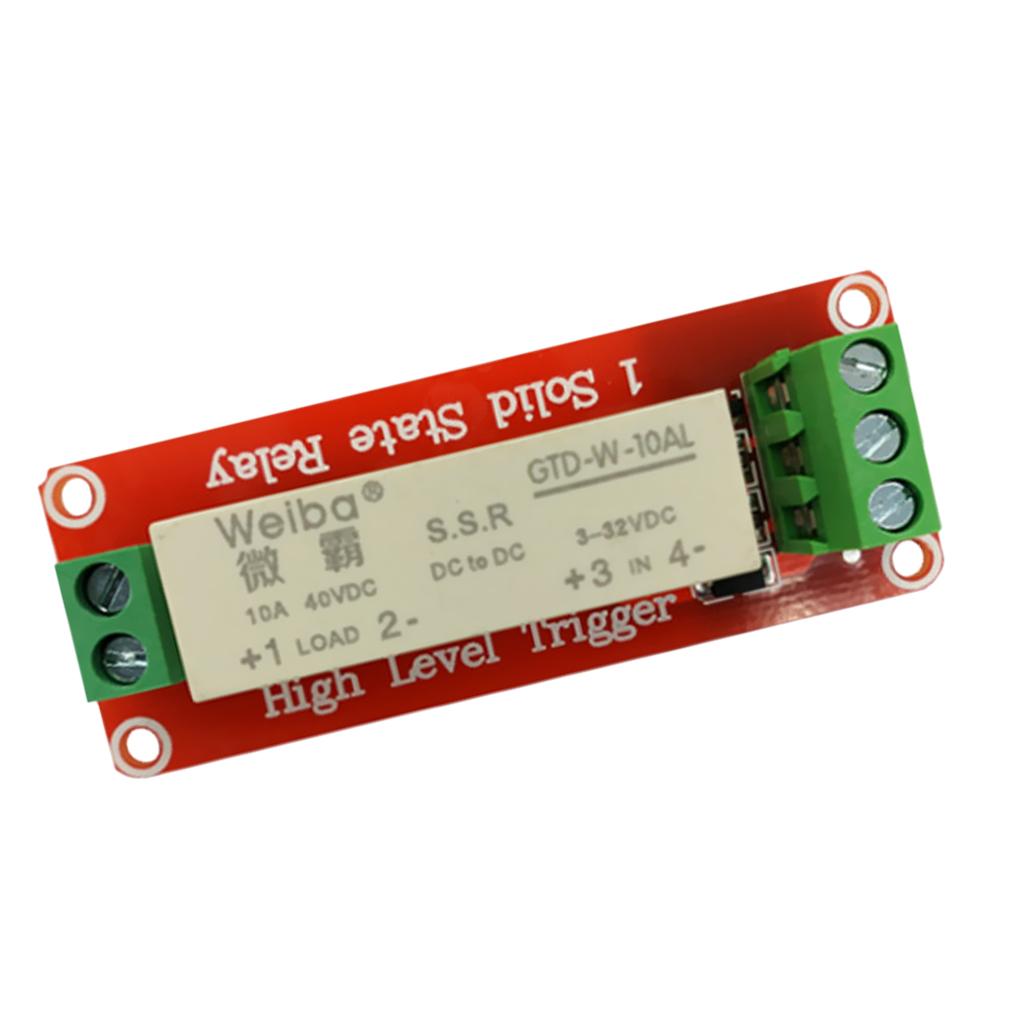

Maxbell 1 CH 5A Solid Relay Module Board Optocouple Highf Level Trigger 5-220V
Rs. 793.00Rs. 1,586.00
Description:
Brand new and high quality
1-Channel 3-32VDC Relay interface board
Equipped with high-current relay DC current
Load voltage: 5-220VDC
Widely used: PLC automation equipment control, industrial system control, Internet control, electronic hobbyist development test, all kinds of circuit modification, etc.
Specification:
Material: Plastic
Color: As picture show
Size: Approx. 72x27x25mm/2.83x1.06x0.98inch
Hole Location Size: Approx. 24.5x69.5mm/0.96x2.74inch
Supply voltage: 3-32VDC
Quiescent current: 0mA
Maximum operating current: 12.5mA
Trigger mode: high level trigger; 1.5-32VDC Relay ON (ON), 0-0.5VDC relay off (OFF)
Load voltage: 5-220VDC
Load current: 5A
Module life: ≤ 10 million times
Switch the maximum frequency: 5KHZ
Package Includes:
1 piece Relay Module Board
